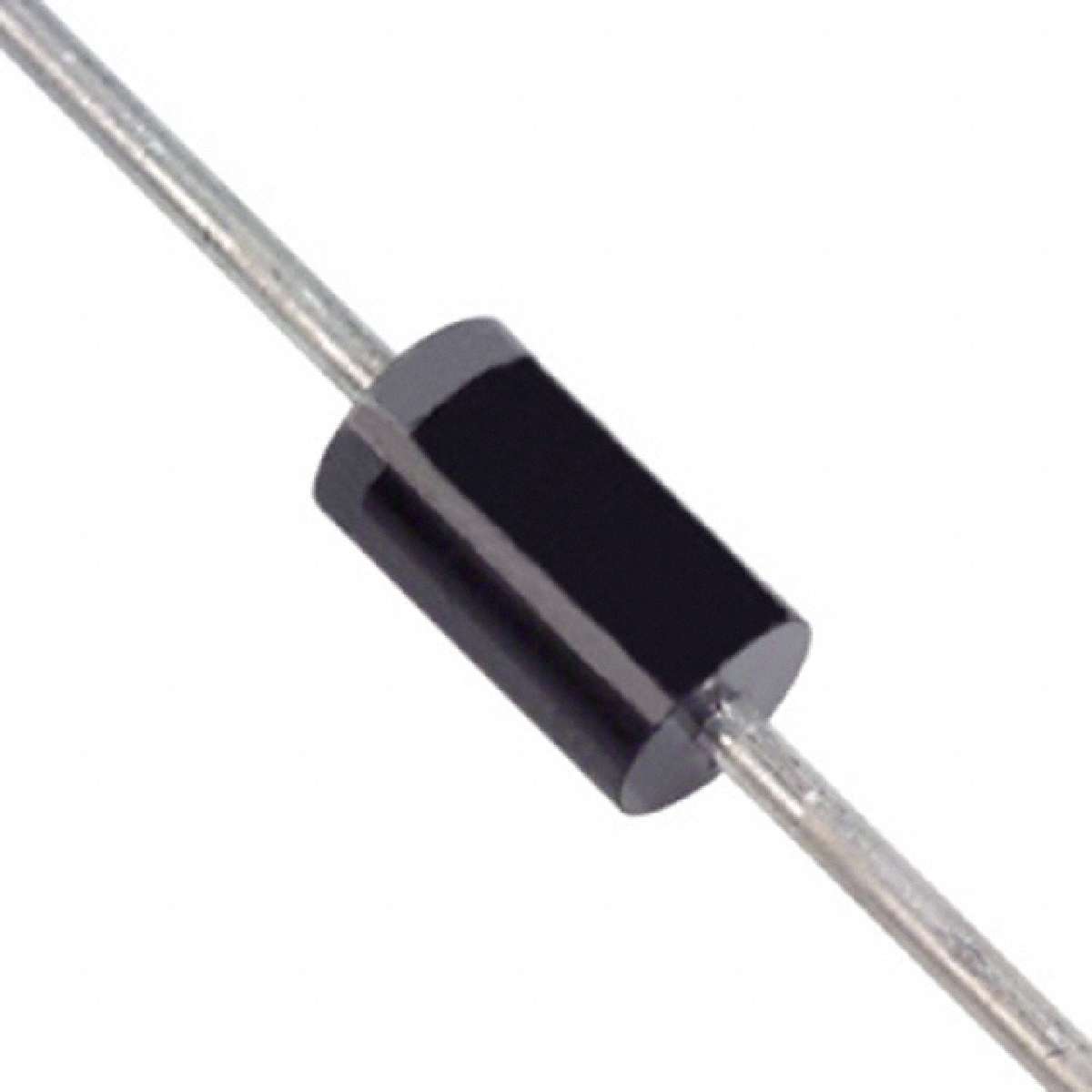

Diode Zener Single 75V 5% 1W 2Pin DO-41 T/R
- 齐纳 75 V 1 W ±5% 通孔 DO-41
得捷:
DIODE ZENER 75V 1W DO41
艾睿:
This 1N4761A-T zener diode from Diodes Zetex is perfect for blocking a voltage. Its maximum leakage current is 5 μA. Its test current is 3.3 mA. Its maximum power dissipation is 1000 mW. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This zener device has a nominal voltage of 75 V and a voltage tolerance of 5%. This zener diode has a minimum operating temperature of -65 °C and a maximum of 175 °C. It is made in a single configuration.
安富利:
Diode Zener Single 75V 5% 1W 2-Pin DO-41 T/R
Verical:
Zener Diode Single 75V 5% 175Ohm 1000mW 2-Pin DO-41 T/R
额定电压DC 75.0 V
容差 ±5 %
额定功率 1.00 W
输出电流 ≤7.50 A
正向电压 1.2V @200mA
耗散功率 1 W
测试电流 3.3 mA
稳压值 75 V
正向电压Max 1.2V @200mA
额定功率Max 1 W
工作温度Max 175 ℃
工作温度Min -65 ℃
安装方式 Through Hole
引脚数 2
封装 DO-41
封装 DO-41
工作温度 -65℃ ~ 175℃
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1N4761A-T Diodes 美台 | 当前型号 | 当前型号 |
NTE5093A NTE Electronics | 类似代替 | 1N4761A-T和NTE5093A的区别 |
1N4761A-TR 威世 | 功能相似 | 1N4761A-T和1N4761A-TR的区别 |
1N4761A NTE Electronics | 功能相似 | 1N4761A-T和1N4761A的区别 |
