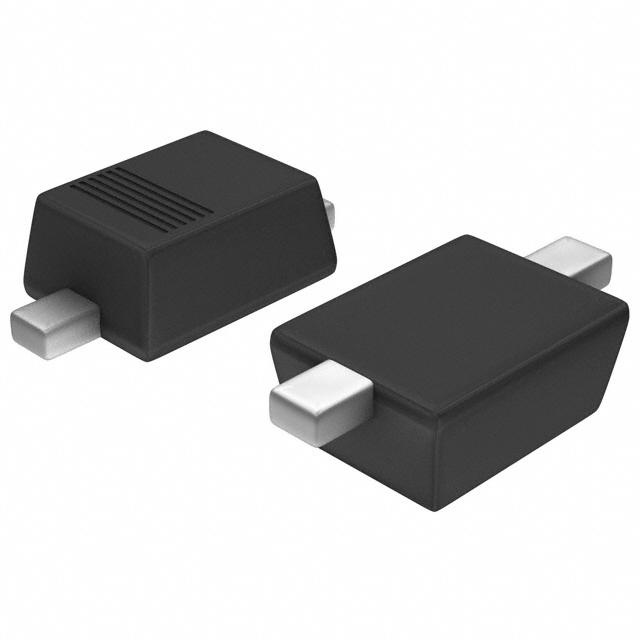

1N4148 系列 100 V 250 mA 400 mW 表面贴装 快速开关 二极管 - SOD-323F
Converting from AC to DC is simple when using a switching diode rectifier from Zetex. Its maximum power dissipation is 400 mW. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It is made in a single configuration. This rectifier has a minimum operating temperature of -55 °C and a maximum of 150 °C. Its peak non-repetitive surge current is 4 A, while its maximum continuous forward current is 0.25 A.
针脚数 2
正向电压 1.25 V
耗散功率 400 mW
反向恢复时间 4 ns
正向电流 250 mA
最大正向浪涌电流(Ifsm) 4 A
正向电压Max 1.25V @150mA
正向电流Max 0.25 A
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 400 mW
安装方式 Surface Mount
引脚数 2
封装 SOD-323
封装 SOD-323
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1N4148WSF-7 Diodes 美台 | 当前型号 | 当前型号 |
1N4148WS 美台 | 完全替代 | 1N4148WSF-7和1N4148WS的区别 |
1N4148WS-13-F 美台 | 类似代替 | 1N4148WSF-7和1N4148WS-13-F的区别 |
1N4148WS-7-F 美台 | 功能相似 | 1N4148WSF-7和1N4148WS-7-F的区别 |
