二极管 - 通用,功率,开关
- 通用,功率,开关
得捷:
DIODE GEN PURP 80V 125MA 2DFN
立创商城:
80V 95mA 4ns
e络盟:
二极管 小信号, 单, 80 V, 95 mA, 1.25 V, 4 ns, 2 A
艾睿:
Switch from an AC voltage to a DC voltage using a switching diode 1N4448HLP-7 rectifier from Diodes Zetex. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Its peak non-repetitive surge current is 2 A, while its maximum continuous forward current is 0.3 A. This rectifier has an operating temperature range of -65 °C to 150 °C. It is made in a single configuration.
Allied Electronics:
Diode Switching 80V 0.25A 2Pin DFN
安富利:
Diode Switching 80V 0.3A 2-Pin DFN T/R
Chip1Stop:
Diode Switching 80V 0.3A 2-Pin DFN T/R
Win Source:
DIODE GEN PURP 80V 125MA 2DFN
额定电压DC 80.0 V
额定电流 125 mA
电容 3.00 pF
额定功率 250 mW
输出电流 ≤125 mA
针脚数 2
正向电压 1V @100mA
极性 Standard
耗散功率 250 mW
反向恢复时间 4 ns
正向电流 0.125 A
最大正向浪涌电流(Ifsm) 2 A
正向电压Max 1V @100mA
正向电流Max 0.3 A
工作温度Max 150 ℃
工作温度Min -65 ℃

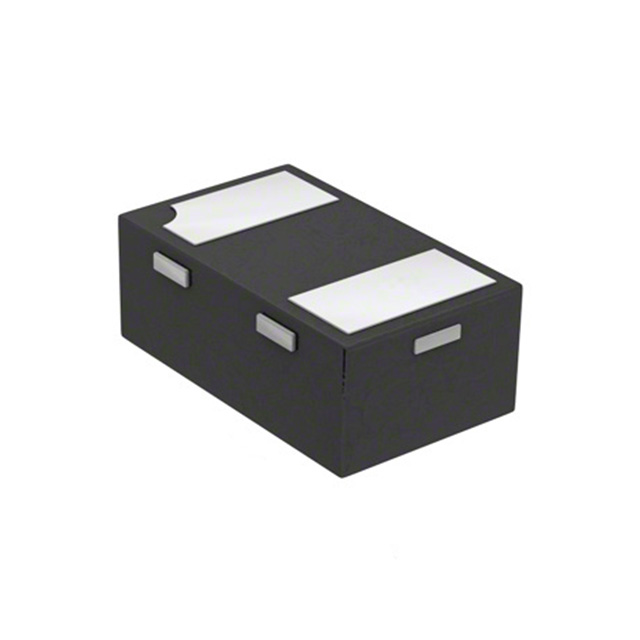

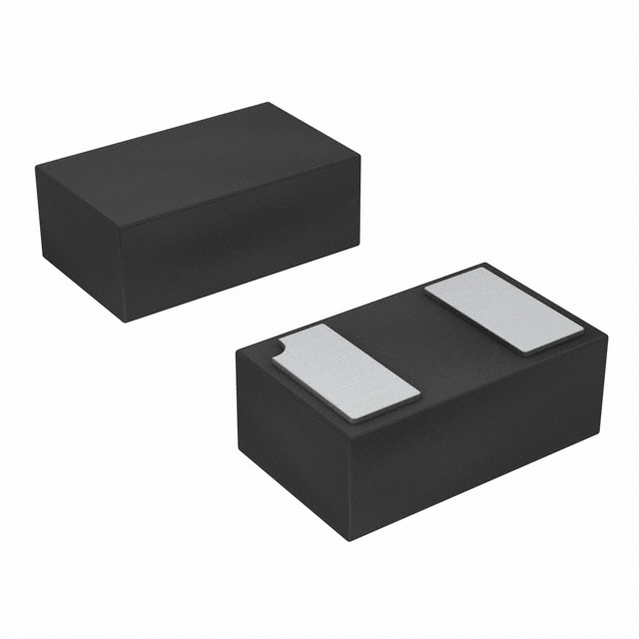

安装方式 Surface Mount
引脚数 2
封装 DFN-2
长度 1 mm
宽度 0.6 mm
高度 0.47 mm
封装 DFN-2
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
