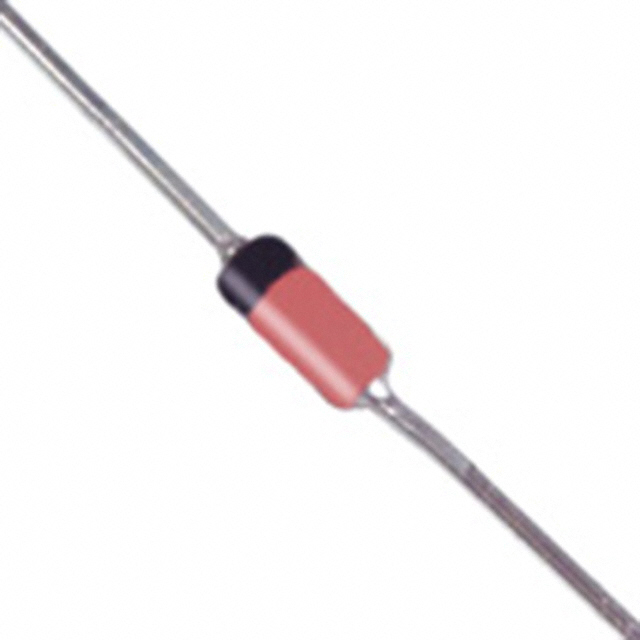

Diode Zener Single 16V 5% 0.5W1/2W 2Pin DO-35 T/R
- 齐纳 ±5% 通孔 DO-35
得捷:
DIODE ZENER 16V 500MW DO35
贸泽:
Zener Diodes 500MW 16V
艾睿:
This 1N5246B-T zener diode from Diodes Zetex is perfect for blocking a voltage. Its test current is 7.8 mA. Its maximum leakage current is 0.1 μA. Its maximum power dissipation is 500 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It is made in a single configuration. This zener device has a nominal voltage of 16 V and a voltage tolerance of 5%. This zener diode has a minimum operating temperature of -65 °C and a maximum of 200 °C.
富昌:
1N5246B Series 500 mW 16 V 200 mA Through Hole Epitaxial Zener Diode - DO-35
Chip1Stop:
Diode Zener Single 16V 5% 500mW 2-Pin DO-35 T/R
Verical:
Zener Diode Single 16V 5% 17Ohm 500mW 2-Pin DO-35 T/R
额定电压DC 16.0 V
容差 ±5 %
额定功率 500 mW
正向电压 1.1V @200mA
耗散功率 0.5 W
测试电流 7.8 mA
稳压值 16 V
正向电压Max 1.1V @200mA
额定功率Max 500 mW
工作温度Max 200 ℃
工作温度Min -65 ℃
安装方式 Through Hole
引脚数 2
封装 DO-35-2
长度 4 mm
宽度 2 mm
高度 2 mm
封装 DO-35-2
工作温度 -65℃ ~ 200℃
产品生命周期 Obsolete
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1N5246B-T Diodes 美台 | 当前型号 | 当前型号 |
1N5246BTR 飞兆/仙童 | 功能相似 | 1N5246B-T和1N5246BTR的区别 |
1N5246B-TR 威世 | 功能相似 | 1N5246B-T和1N5246B-TR的区别 |
