整流器 3.0A 50V
标准 50 V 3A 通孔 DO-201AD
得捷:
DIODE GEN PURP 50V 3A DO201AD
贸泽:
整流器 3.0A 50V
艾睿:
If your circuit needs to adjust from an AC to DC voltage use a switching diode 1N5400G-T rectifier from Diodes Zetex. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its peak non-repetitive surge current is 125 A, while its maximum continuous forward current is 3@Ta=55C A. It is made in a single configuration. This rectifier has a minimum operating temperature of -65 °C and a maximum of 150 °C.
安富利:
Diode Switching 50V 3A 2-Pin DO-201AD T/R
Chip1Stop:
Diode Switching 50V 3A 2-Pin DO-201AD T/R
额定电压DC 50.0 V
额定电流 3.00 A
电容 40.0 pF
输出电流 ≤3.00 A
正向电压 1.1V @3A
极性 Standard
热阻 16℃/W RθJA
反向恢复时间 2 µs
正向电压Max 1.1V @3A
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Through Hole
引脚数 2

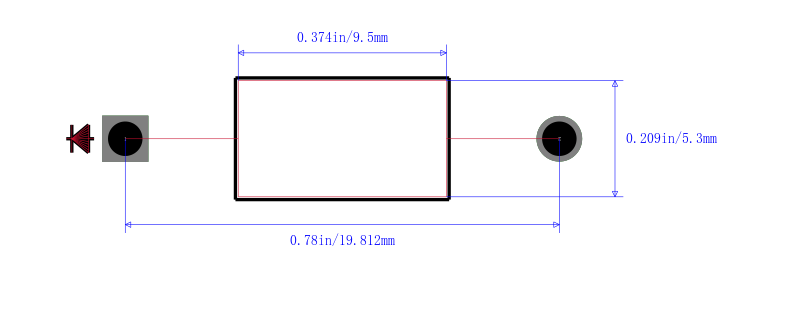

封装 DO-201AD
长度 9.5 mm
宽度 5.3 mm
高度 5.3 mm
封装 DO-201AD
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1N5400G-T Diodes 美台 | 当前型号 | 当前型号 |
1N5400G 安森美 | 功能相似 | 1N5400G-T和1N5400G的区别 |
1N5400RLG 安森美 | 功能相似 | 1N5400G-T和1N5400RLG的区别 |
1N5400 安森美 | 功能相似 | 1N5400G-T和1N5400的区别 |
