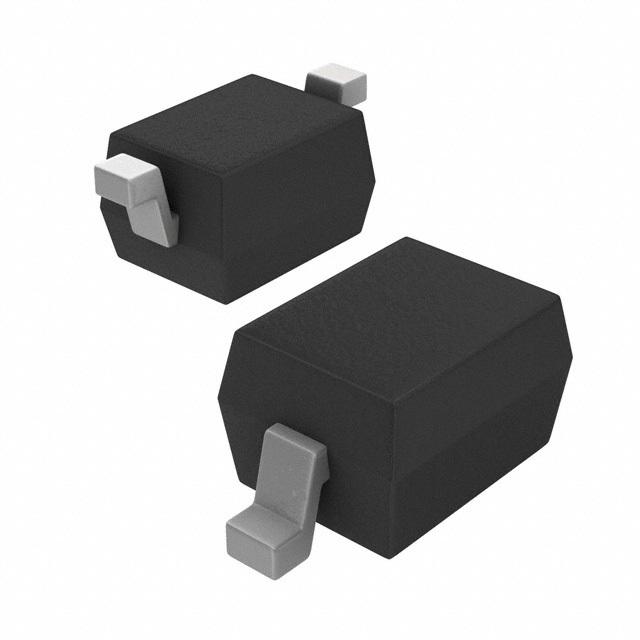

1N4148WS 系列 200 mW 75 V 300 mA 表面贴装 开关二极管 - SOD-323
Diode Standard 75V 150mA Surface Mount SOD-323
立创商城:
75V 150mA 4ns
得捷:
DIODE GEN PURP 75V 150MA SOD323
艾睿:
Switch from an AC voltage to a DC voltage using a switching diode 1N4148WS-13-F rectifier from Diodes Zetex. Its maximum power dissipation is 200 mW. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This rectifier has a minimum operating temperature of -65 °C and a maximum of 150 °C. It is made in a single configuration. Its peak non-repetitive surge current is 2 A, while its maximum continuous forward current is 0.3 A.
安富利:
Diode Switching 75V 0.3A 2-Pin SOD-323 T/R
Chip1Stop:
Diode Switching 75V 0.3A 2-Pin SOD-323 T/R
Verical:
Rectifier Diode Small Signal Switching 75V 0.3A 4ns 2-Pin SOD-323 T/R
儒卓力:
**SI-DIODE 0,15A 100V SOD323 **
额定功率 200 mW
正向电压 1.25V @150mA
耗散功率 200 mW
热阻 625℃/W RθJA
反向恢复时间 4 ns
正向电流 300 mA
正向电压Max 1.25V @150mA
正向电流Max 0.3 A
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 150℃ Max
耗散功率Max 200 mW
安装方式 Surface Mount
引脚数 2
封装 SOD-323
封装 SOD-323
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1N4148WS-13-F Diodes 美台 | 当前型号 | 当前型号 |
1N4148WSF-7 美台 | 类似代替 | 1N4148WS-13-F和1N4148WSF-7的区别 |
1N4148WS-7-F 美台 | 功能相似 | 1N4148WS-13-F和1N4148WS-7-F的区别 |
MMDL914T1G 安森美 | 功能相似 | 1N4148WS-13-F和MMDL914T1G的区别 |
