Diode Switching 200V 3A 2Pin DO-201AD T/R
Diode Standard 200V 3A Through Hole DO-201AD
得捷:
DIODE GEN PURP 200V 3A DO201AD
贸泽:
Rectifiers 3.0A 100V
艾睿:
Switch from an AC voltage to a DC voltage using a switching diode 1N5402G-T rectifier from Diodes Zetex. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This rectifier has an operating temperature range of -65 °C to 150 °C. Its peak non-repetitive surge current is 125 A, while its maximum continuous forward current is 3@Ta=55C A. It is made in a single configuration.
安富利:
Diode Switching 200V 3A 2-Pin DO-201AD T/R
Chip1Stop:
Diode Switching 200V 3A 2-Pin DO-201AD T/R
额定电压DC 200 V
额定电流 3.00 A
电容 40.0 pF
输出电流 ≤3.00 A
正向电压 1.1 V
极性 Standard
热阻 16℃/W RθJA
反向恢复时间 2 µs
正向电流 3 A
正向电压Max 1.1V @3A
工作温度Max 150 ℃
工作温度Min 65 ℃
安装方式 Through Hole
引脚数 2

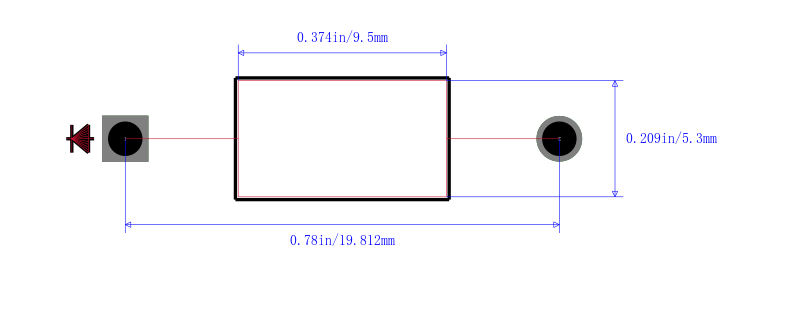

封装 DO-201AD
长度 9.5 mm
宽度 5.3 mm
高度 5.3 mm
封装 DO-201AD
工作温度 65℃ ~ 150℃
产品生命周期 Discontinued at Digi-Key
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1N5402G-T Diodes 美台 | 当前型号 | 当前型号 |
1N5402RLG 安森美 | 功能相似 | 1N5402G-T和1N5402RLG的区别 |
1N5402-E3/54 威世 | 功能相似 | 1N5402G-T和1N5402-E3/54的区别 |
1N5402RL 安森美 | 功能相似 | 1N5402G-T和1N5402RL的区别 |
