10A07-T 编带
10A07 Series 1000 V 10 A Axial Through Hole Standard Rectifier - R-6
得捷:
DIODE GEN PURP 1KV 10A R-6
立创商城:
1kV 10A 1V@10A
艾睿:
If your circuit needs to adjust from an AC to DC voltage use a switching diode 10A07-T rectifier from Diodes Zetex. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its peak non-repetitive surge current is 600 A, while its maximum continuous forward current is 10@Ta=50C A. It is made in a single configuration. This rectifier has a minimum operating temperature of -65 °C and a maximum of 150 °C.
Allied Electronics:
Diode Switching 1KV 10A 2Pin R6
安富利:
Diode Switching 1KV 10A 2-Pin Case R-6 T/R
富昌:
10A07 系列 1000 V 10 A 轴向 通孔 标准 整流器 - R-6
Chip1Stop:
Diode Switching 1KV 10A 2-Pin Case R-6 T/R
Verical:
Rectifier Diode Switching 1KV 10A 2-Pin Case R-6 T/R
Win Source:
DIODE GEN PURP 1KV 10A R6
额定电压DC 1.00 kV
额定电流 10.0 A
输出电流 ≤10.0 A
针脚数 2
正向电压 1V @10A
极性 Standard
热阻 10℃/W RθJA
正向电流 10 A
最大正向浪涌电流(Ifsm) 600 A
正向电压Max 1V @10A
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 150℃
安装方式 Through Hole
引脚数 2

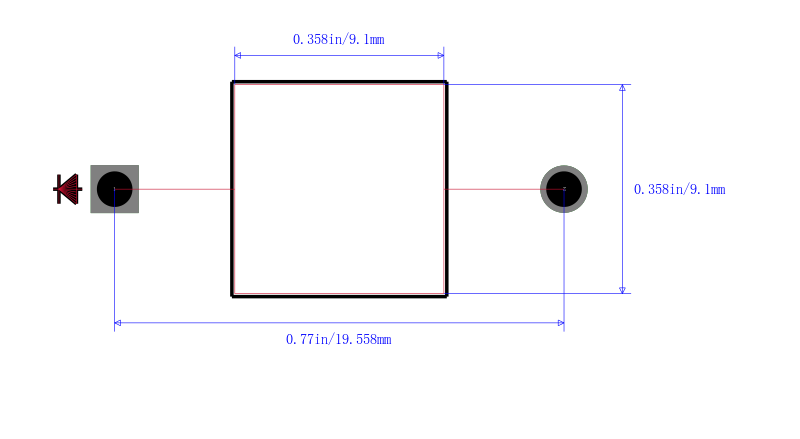

封装 R-6
长度 9.1 mm
宽度 9.1 mm
高度 9.1 mm
封装 R-6
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
10A07-T Diodes 美台 | 当前型号 | 当前型号 |
10A07-TP 美微科 | 功能相似 | 10A07-T和10A07-TP的区别 |
LT10A07 光宝 | 功能相似 | 10A07-T和LT10A07的区别 |
