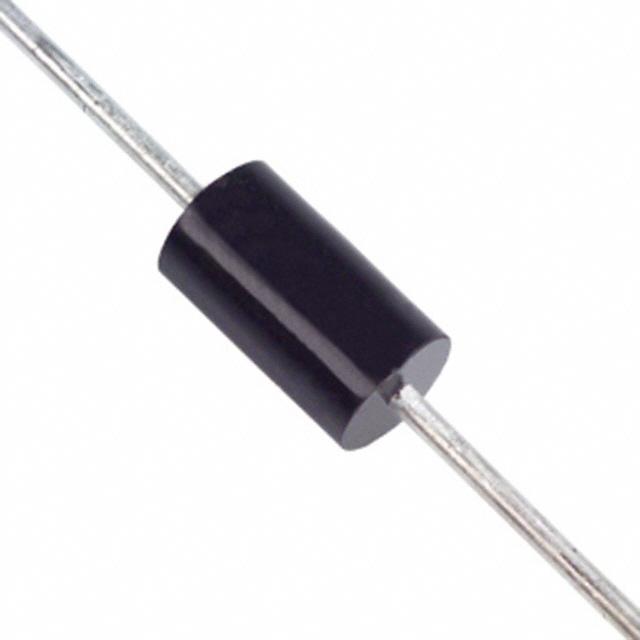

1.5KE6V8A-T

单向 5.8V

10.5V 夹子 143A Ipp TVS - 通孔 DO-201

得捷:
TVS DIODE 5.8VWM 10.5VC DO201

立创商城:
单向 Vrwm:5.8V 1.5kW

艾睿:
Protect your critical electronic applications from sudden overvoltage conditions with this 1.5KE6V8A-T TVS diode from Diodes Zetex. Its test current is 10 mA. Its peak pulse power dissipation is 1500 W. Its maximum leakage current is 1000 μA. This device&s;s maximum clamping voltage is 10.5 V and minimum breakdown voltage is 6.45 V. This TVS diode has an operating temperature range of -55 °C to 175 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.

安富利:
Diode TVS Single Uni-Dir 5.8V 1.5KW 2-Pin DO-201 T/R

Chip1Stop:
Diode TVS Single Uni-Dir 5.8V 1.5KW 2-Pin DO-201 T/R

Verical:
TVS Diode Single Uni-Dir 5.8V 1.5KW 2-Pin DO-201 T/R
