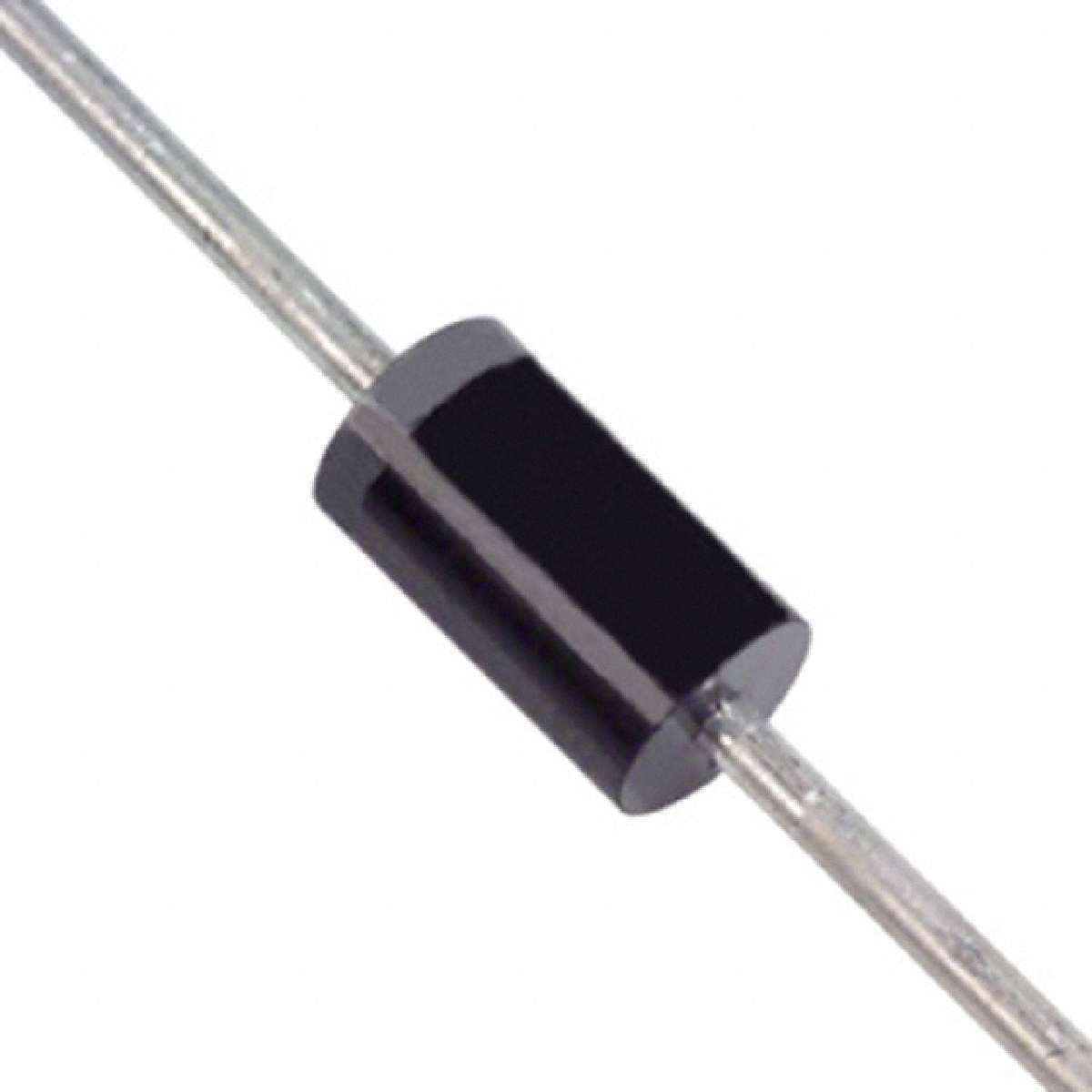

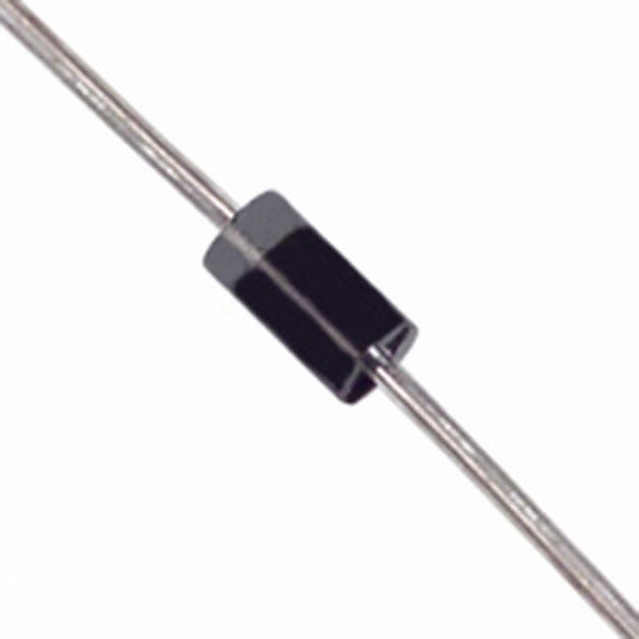

Diode Switching 50V 1A 2Pin DO-41 T/R
标准 1A 通孔 DO-41
得捷:
DIODE GEN PURP 50V 1A DO41
贸泽:
Rectifiers 1.0A 50V
艾睿:
Switch from an AC voltage to a DC voltage using a switching diode 1N4001G-T rectifier from Diodes Zetex. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This rectifier has a minimum operating temperature of -65 °C and a maximum of 175 °C. Its peak non-repetitive surge current is 30 A, while its maximum continuous forward current is 1@Ta=75C A. It is made in a single configuration.
Chip1Stop:
Diode Switching 50V 1A 2-Pin DO-41 T/R
Verical:
Rectifier Diode Switching 50V 1A 2000ns 2-Pin DO-41 T/R
额定电压DC 50.0 V
额定电流 1.00 A
电容 8.00 pF
输出电流 ≤1.00 A
正向电压 1 V
极性 Standard
热阻 100℃/W RθJA
反向恢复时间 2 µs
正向电流 1 A
正向电压Max 1V @1A
工作温度Max 175 ℃
工作温度Min 65 ℃
安装方式 Through Hole
引脚数 2
封装 DO-41
长度 5.21 mm
宽度 2.72 mm
高度 2.72 mm
封装 DO-41
工作温度 65℃ ~ 175℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1N4001G-T Diodes 美台 | 当前型号 | 当前型号 |
1N4001-T 美台 | 类似代替 | 1N4001G-T和1N4001-T的区别 |
1N4001RLG 安森美 | 功能相似 | 1N4001G-T和1N4001RLG的区别 |
1N4935G 安森美 | 功能相似 | 1N4001G-T和1N4935G的区别 |
