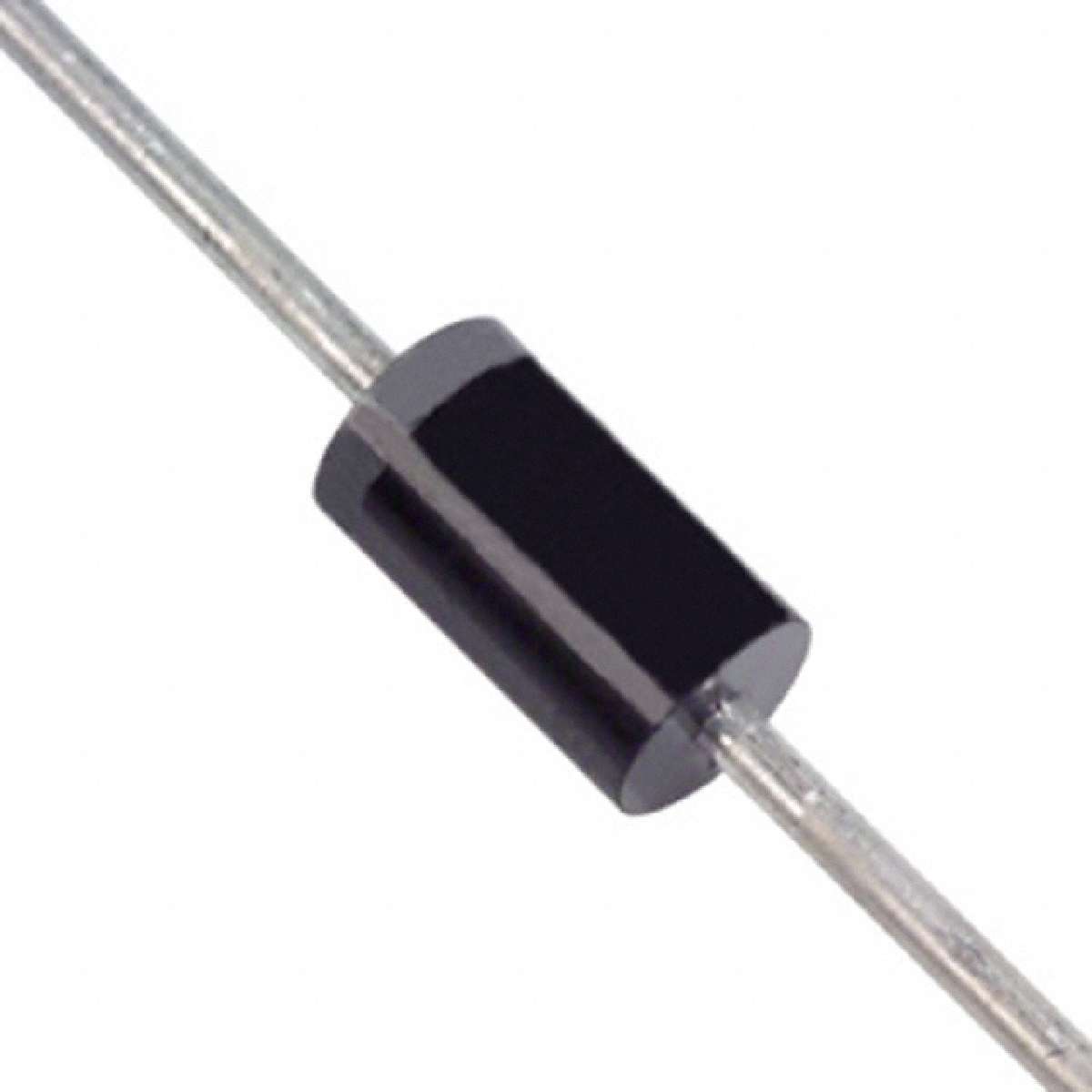

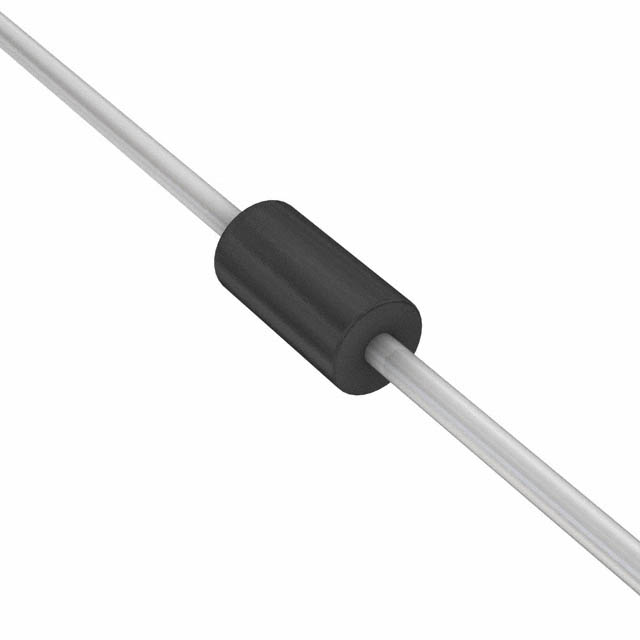

1N4001L-T

DIODE STD REC 1A 50V A-405

Features

Diffused Junction

High Current Capability and Low Forward Voltage Drop

Surge Overload Rating to 30A Peak

Low Reverse Leakage Current

Lead Free Finish, RoHS Compliant Note 4

Mechanical Data

Case: DO-41, A-405

Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020C

Terminals: Finish - Bright Tin. Plated Leads Solderable per MIL-STD-202, Method 208

Polarity: Cathode Band

Mounting Position: Any

Ordering Information: See Last Page

Marking: Type Number

Weight: DO-41 0.30 grams approximate

         A-405 0.20 grams approximate
