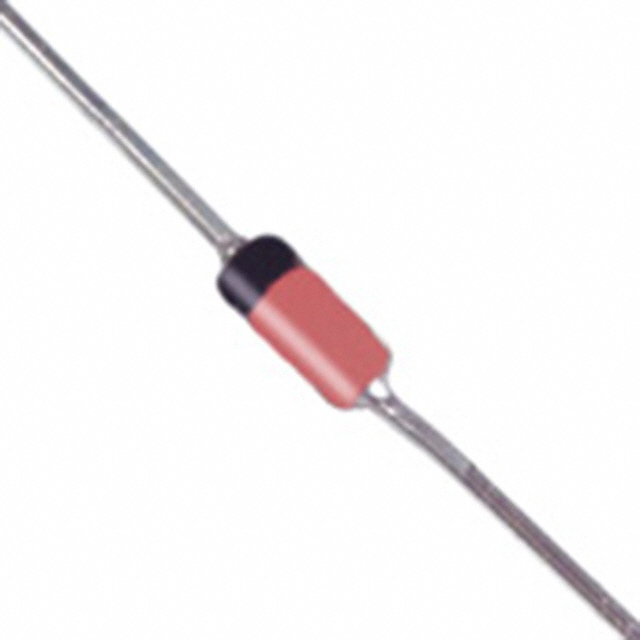

1N5239B-T

Diode Zener Single 9.1V 5% 0.5W1/2W 2Pin DO-35 T/R

Features

● 500mW Power Dissipation

● High Stability

● Surface Mount Equivalents Available

● Hermetic Package

● VZ - Tolerance ±5%

● Lead Free Finish, RoHS Compliant Note 2

得捷:
DIODE ZENER 9.1V 500MW DO35

贸泽:
Zener Diodes 500MW 9.1V

艾睿:
This 1N5239B-T zener diode from Diodes Zetex is perfect for your circuit requiring a diode to operate in the reverse-breakdown region. Its maximum leakage current is 3 μA. Its test current is 20 mA. Its maximum power dissipation is 500 mW. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It is made in a single configuration. This zener device has a nominal voltage of 9.1 V and a voltage tolerance of 5%. This zener diode has an operating temperature range of -65 °C to 200 °C.

富昌:
1N5239B 系列 500 mW 9.1 V 200 mA 通孔 外延 齐纳二极管 - DO-35

Chip1Stop:
Diode Zener Single 9.1V 5% 500mW 2-Pin DO-35 T/R

Verical:
Zener Diode Single 9.1V 5% 10Ohm 500mW 2-Pin DO-35 T/R
