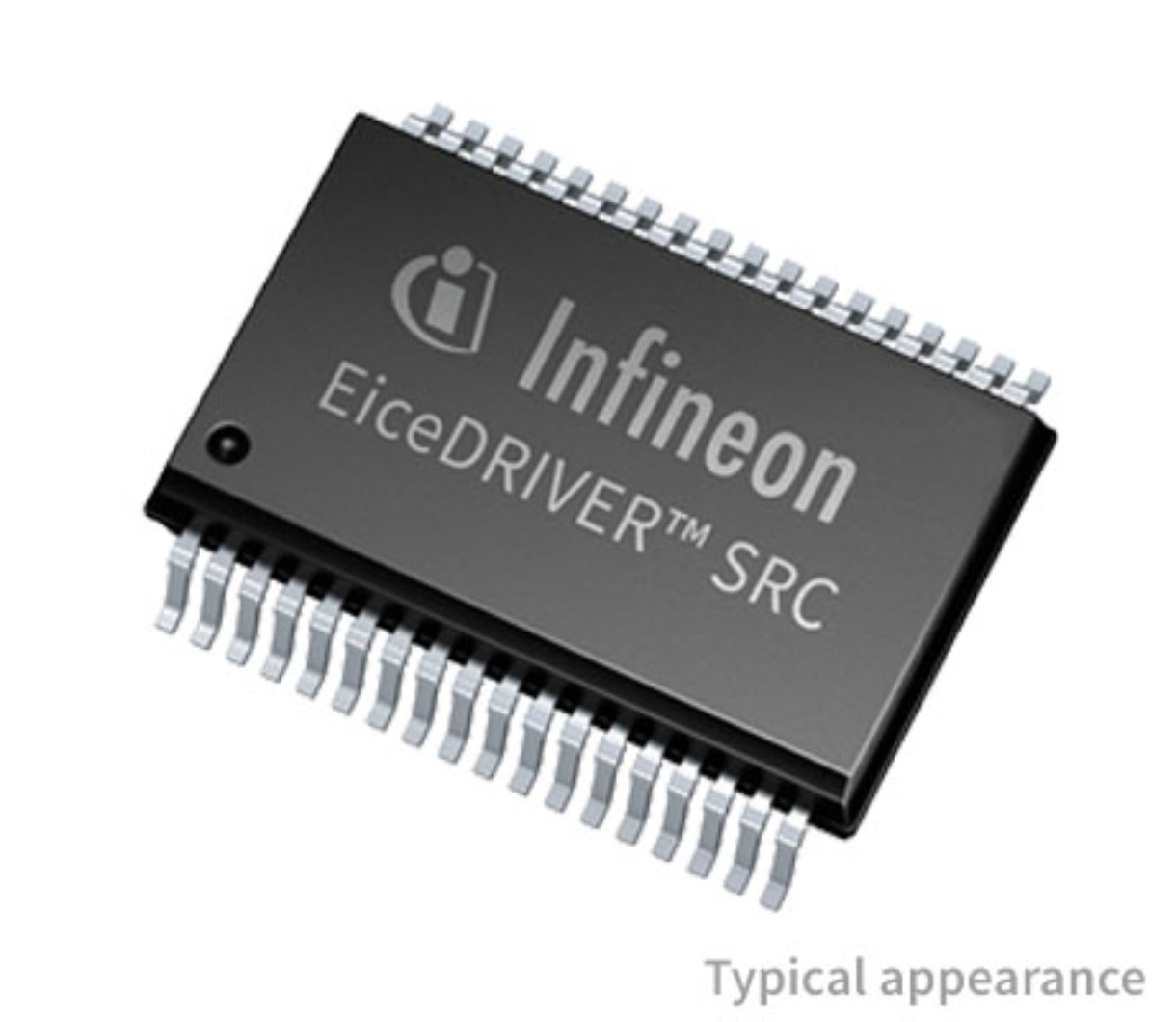

1EDU20I12SVXUMA1

门驱动器 DRIVER IC

Summary of Features:

.

Slew rate control

.

Single-channel isolated IGBT Driver

.

Supports IGBT up to 1200 V

.

IGBT off-state: 2 A pull down to rail

.

Overcurrent protection for sense IGBTs and conventional IGBTs

.

Desaturation detection

.

Soft turn-off shut down: 1 A pull down to rail

.

Two-level turn-off

.

Operation at high ambient temperature up to 105°C

.

Compatible PWM inputs for 3.3 V, 5 V, and 15 V logic voltages

Benefits:

.

Optimized short circuit control for 3-level inverters

.

Online adjustable current source slew rate control during IGBT turn-on

.

UL certification according UL 1577 _V_ISO = 5000 Vrms for 1 min
