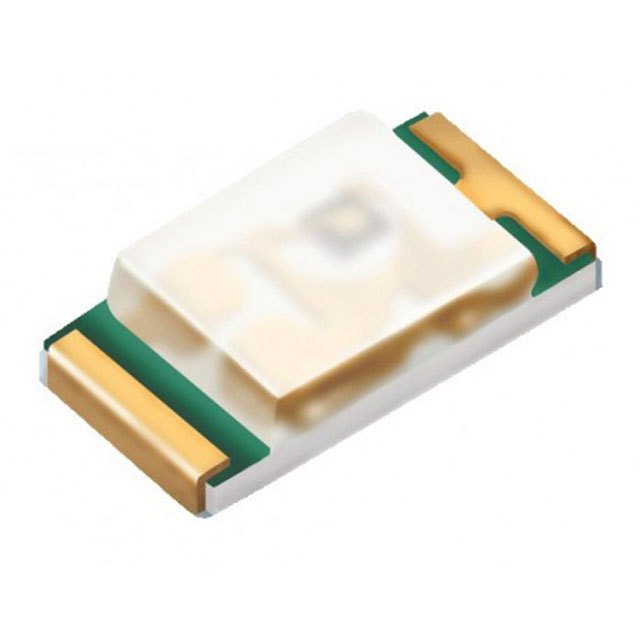

19-217/S2C-AM2N2VY/3T 编带
Orange LED Indication - Discrete 1.95V 0603 1608 Metric
得捷: LED ORANGE CLEAR 2SMD
立创商城: 橙灯
艾睿: LED Uni-Color Orange 611nm 2-Pin Chip 06031608Metric T/R
正向电压 1.95 V
波长 612.5 nm
视角 120°
峰值波长 611 nm
测试电流 5 mA
正向电压Max 2.2 V
正向电流Max 25 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 60 mW
安装方式 Surface Mount
引脚数 2
封装 0603
颜色 Orange
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 无铅
数据手册
