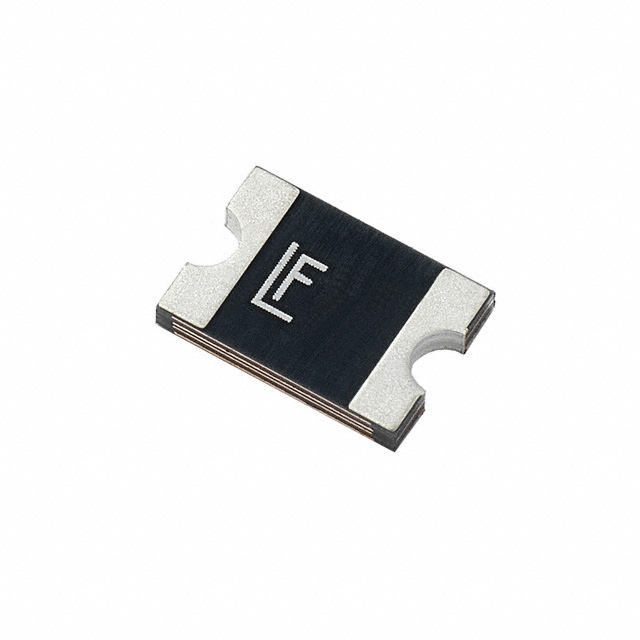

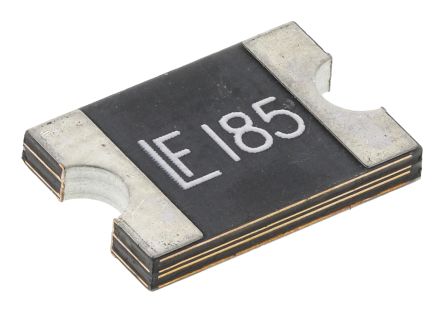

LITTELFUSE 2920L185DR 自复式保险丝, PTC, 2920, 1.85A
POLY-FUSE 可重置 PTC - 2920L 系列
Littelfuse 2920L 系列 PTC 为空间要求严格且需要可重置保护的应用提供表面安装过电流保护。
得捷:
PTC RESET FUSE 33V 1.85A 2920
立创商城:
33V 1.85A
欧时:
Littelfuse 1.85A 表面固定可复位熔断器 2920L185DR, 33V dc, 7.98 x 5.44 x 1.25mm, 1.5W功耗
贸泽:
自恢复保险丝—PPTC 1.85A 33V 2920
e络盟:
保险丝, PTC自复式, 33V, 1.85A, 2920, 整卷
艾睿:
Resuming operation after a fuse burns out has never been more convenient with this 2920L185DR PTC resettable fuse from Littelfuse! This device has a maximum current rating of 40. This resettable fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 7.98Max mm long, 1.25Max mm tall and 5.44Max mm deep.
Allied Electronics:
1.85A Surface Mount Resettable Fuse, 33V dc
Chip1Stop:
PTC Resettable Fuse 1.85Ahold 3.7Atrip 33VDC 40A 1.5W 2.5s 0.05Ohm SMD Solder Pad 2920 T/R
TME:
Fuse: PTC polymer; 1.85A; 2920L
Verical:
PTC Resettable Fuse 1.85Ahold 3.7Atrip 33VDC 40A 1.5W 2.5s 0.05Ohm SMD Solder Pad 2920 T/R
Newark:
# LITTELFUSE 2920L185DR PPTC Resettable Fuse, SMD, POLYFUSE 2920L Series, 1.85 A, 3.7 A, 33 VDC, -40 °C
儒卓力:
**POLYFUSE 1.85A 33V SMD 2920 **
Win Source:
PTC RESET 33V 1.85A SMD 2920
额定电压DC 33.0 V
工作电压 33 V
跳闸时间 2.5 s
额定电流 40 A
额定功率 1.5 W
耗散功率 1.5 W
电阻 0.15 Ω
保持电流 1.85 A
跳闸电流 3.7 A
额定电流Max 40 A
保持电流Max 1.85 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 33 VDC
额定电压 33 VDC
工作电压Max 33 V
安装方式 Surface Mount
封装 2920
长度 6.73 mm
宽度 4.8 mm
高度 1.25 mm
封装 2920
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 车用, Automotive, Consumer Electronics, 消费电子产品, 计算机和计算机周边, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
2920L185DR Littelfuse 力特 | 当前型号 | 当前型号 |
SMD2920P185TFA 力特 | 完全替代 | 2920L185DR和SMD2920P185TFA的区别 |
MF-SM185/33-2 伯恩斯 | 功能相似 | 2920L185DR和MF-SM185/33-2的区别 |
MC33198 Multicomp | 功能相似 | 2920L185DR和MC33198的区别 |
