2845/19 BK005

ALPHA WIRE  2845/19 BK005  线缆, 黑色, 22 AWG, 0.385 mm², 19 x 34AWG, 100 ft, 30.5 m

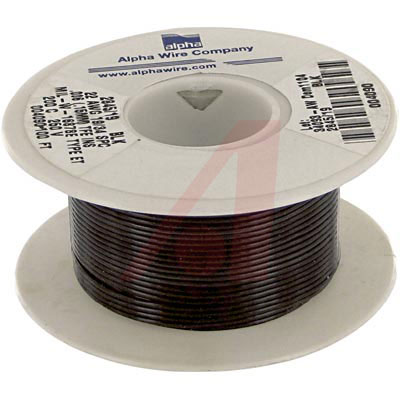

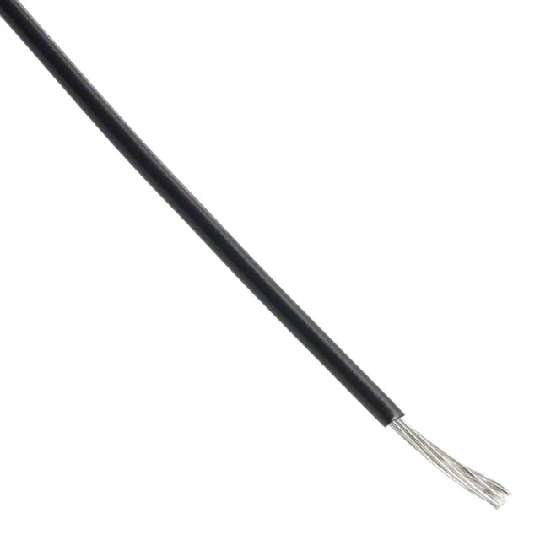

The is a 100ft black Hook-up Wire with silver-plated copper conductor and PTFE insulation. It is exactly suited for the application as control cabinet in a protected environment or as specialized as a machine tool on the factory floor, a high-temperature oven or off-road construction equipment. It has ability to withstand wear and abrasion, electrical performance or resistance to oil, solvents and chemicals.

.

5.9Lbs Maximum pull tension

.

NEMA HP3-ETXBFE

.

0.03µH/ft Nominal inductance

.

-60 to 200°C Temperature range
