2801252

2801252图片1
2801252图片2
2801252图片3
2801252图片4
2801252图片5
2801252概述

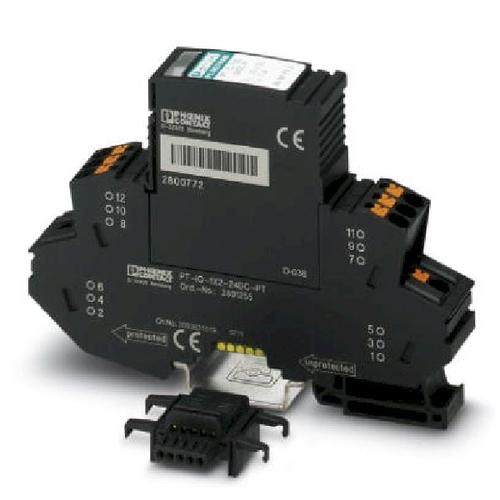

Phoenix Contact 4V 交流,6V 直流 10kA 电涌放电器保护模块, DIN 导轨安装, 17.7 x 77.5 x 109.3mm

Surge protection, consisting of protective plug and base element, with integrated multi-stage status indicator on the module for one 2-wire floating signal circuit. Indirect grounding via gas-filled surge arrester.


得捷:
SURGE PROTECTION DEVICE


欧时:
Phoenix Contact 4V 交流,6V 直流 10kA 电涌放电器保护模块 2801252, DIN 导轨安装, 17.7 x 77.5 x 109.3mm


贸泽:
浪涌抑制器 PT-IQ-1X2+F-5DC-PT


艾睿:
Surge Suppressors 1A 5VDC DIN Rail Plug-In


Verical:
Surge Suppressors 1A 5VDC DIN Rail Plug-In


MASTER:
Surge protection, consisting of protective plug and base element, with integrated multi-stage status indicator on the module for one 2-wire floating signal circuit. Indirect grounding via gas-filled surge arrester.


Online Components:
Surge protection, consisting of protective plug and base element, with integrated multi-stage status indicator on the module for one 2-wire ...


2801252中文资料参数规格
技术参数

额定电流 1000 mA

工作温度Max 70 ℃

工作温度Min -40 ℃

额定电压 5 V

封装参数

安装方式 DIN Rail

外形尺寸

长度 77.5 mm

宽度 17.7 mm

高度 109.3 mm

物理参数

工作温度 -40℃ ~ 70℃

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536308000

数据手册

在线购买2801252
型号: 2801252
描述:Phoenix Contact 4V 交流,6V 直流 10kA 电涌放电器保护模块, DIN 导轨安装, 17.7 x 77.5 x 109.3mm
