2801266

2801266图片1
2801266图片2
2801266图片3
2801266图片4
2801266图片5
2801266概述

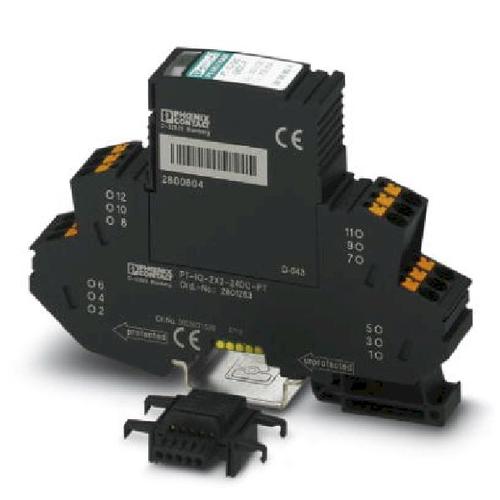

Phoenix Contact 37V 交流,53V 直流 10kA 电涌放电器保护模块 2801266, DIN 导轨安装

Surge protection, consisting of protective plug and base element, with integrated multi-stage status indicator on the module for two 2-wire floating signal circuits. Indirect grounding via gas-filled surge arrester.


得捷:
PT-IQ-2X2+F-48DC-PT


欧时:
Surge Protection Device 2801266


贸泽:
浪涌抑制器 PT-IQ-2X2+F-48DC-PT


艾睿:
Surge Suppressors 0.3A 48VDC DIN Rail Plug-In


Verical:
Surge Suppressors 0.3A 48VDC DIN Rail Plug-In


MASTER:
Surge protection - consisting of protective plug and base element - with integrated multi-stage status indicator on the module for two 2-wire floating signal circuits. Indirect grounding via gas-filled surge arrester.


Online Components:
Surge protection, consisting of protective plug and base element, with integrated multi-stage status indicator on the module for two 2-wire ...


2801266中文资料参数规格
技术参数

电容 1.5 nF

电阻 1.2 Ω

工作温度Max 70 ℃

工作温度Min -40 ℃

输入电压 48 VDC

封装参数

安装方式 DIN Rail

封装 -

外形尺寸

长度 77.5 mm

宽度 17.7 mm

高度 109.3 mm

封装 -

物理参数

颜色 Black

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买2801266
型号: 2801266
描述:Phoenix Contact 37V 交流,53V 直流 10kA 电涌放电器保护模块 2801266, DIN 导轨安装
替代型号2801266
型号/品牌 代替类型 替代型号对比

2801266

Phoenix 菲尼克斯

当前型号

当前型号

2801265

菲尼克斯

完全替代

2801266和2801265的区别
