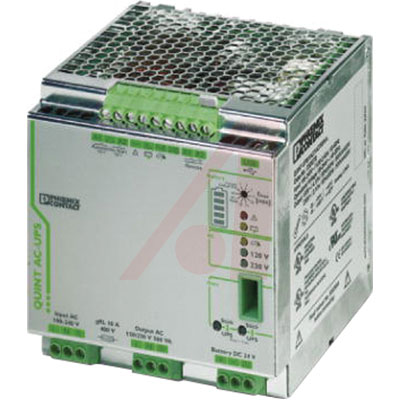

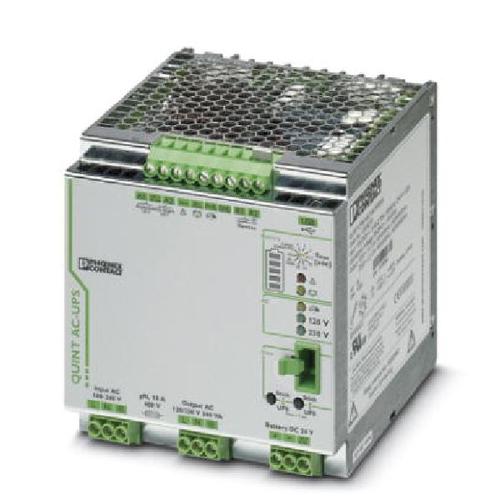

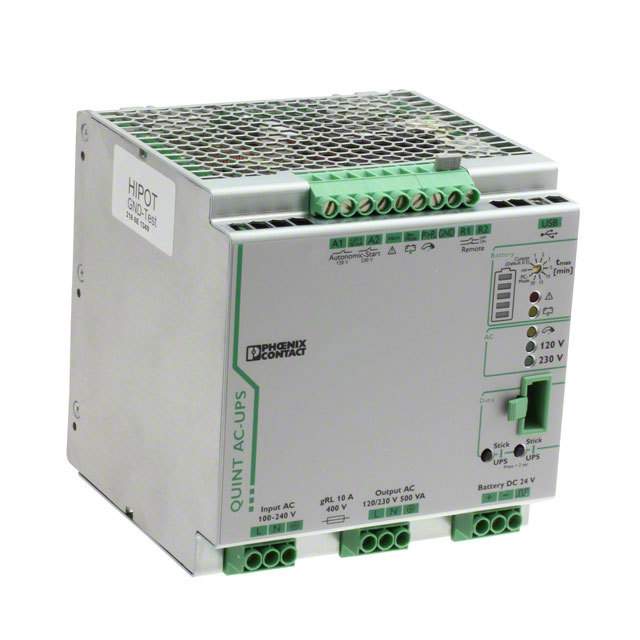

PHOENIX CONTACT  2320270  不间断电源, IP20, 1 出口, 264 V, 120 VAC, 125 mm 新

AC Uninterruptible Power Supplies use the same intelligent features of the IQ Series.

* During a Mains Failure, Output is Automatically Supplied with 120 VAC/ 60 Hz or 230 VAC/50 Hz, with Manual Voltage Preselection Possible

* Worldwide for Input Voltages from 96 to 264 VAC

* Simplified Startup; the UPS Can Be Switched on without an AC Power Source Present


得捷:
UPS 120/230VAC DIN RAIL


艾睿:
This 2320270 uninterruptible power supply manufactured by Phoenix Contact will provide uninterruptable power even when power outages occur. It has a voltage of 120/230. This part has a temperature range of -25 °C to 70 °C.


Allied Electronics:
Uninterruptible power supply; For 120 VAC/230 V AC applications


Verical:
UPS DIN Rail 120V/230V


Newark:
# PHOENIX CONTACT  2320270  UPS, 120/230VAC, 4.3/2.2A, DINRAIL


MASTER:
Uninterruptible power supply with IQ technology 1AC/1AC/500 VA. For 120 V AC/230 V AC applications. Provides information regarding the charging state - remaining runtime - and service life of your rechargeable battery module at all times and thereby incre


Online Components:
UPS DIN Rail 120V/230V


Electro Sonic:
Uninterruptible power supply with IQ technology 1AC/1AC/500 VA. For 120 V AC/230 V AC applications. Provides information regarding the charging ...


2320270中文资料参数规格
技术参数

输出接口数 1

输出电压 120 VAC

输出电流 4.3 A

输入电压AC Max 264 v

输出电流Max 4.3 A

工作温度Max 70 ℃

工作温度Min -25 ℃

输入电压 120V, 230V

外形尺寸

长度 125 mm

宽度 125 mm

高度 130 mm

电源线长度 1.18 m

物理参数

重量 2.2 kg

其他

产品生命周期 Active

包装方式 Bulk

制造应用 -

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8504407012

数据手册

在线购买2320270
型号: 2320270
描述:PHOENIX CONTACT  2320270  不间断电源, IP20, 1 出口, 264 V, 120 VAC, 125 mm 新
