2891660概述

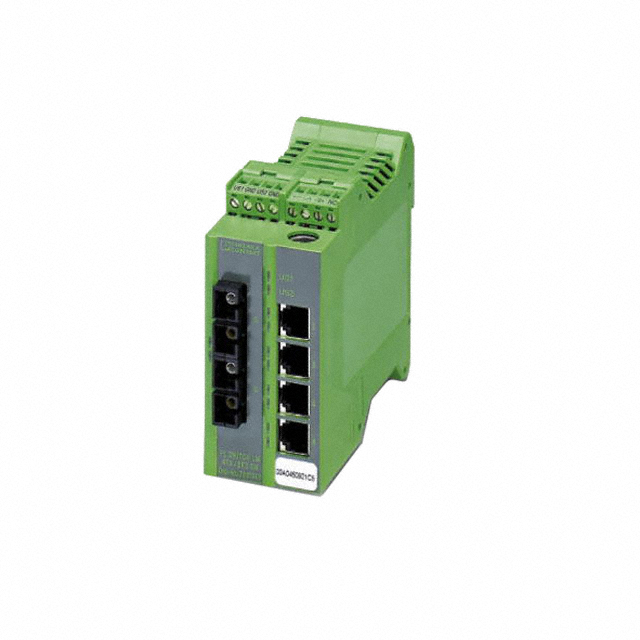

以太网模块 FL SWITCH LM 4TX

The LMS Lean Managed Switch is a compact, powerful and economical managed Ethernet switch. Support of SNMP Simple Network Management Protocol, RSTP Rapid Spanning Tree Protocol and easy Web Based Management capability are standard features.

The Lean Managed Switch was developed to bring key managed functionality to the market at a cost effective level. It is designed for customers who desire capabilities beyond what an unmanaged switch can provide, but find managed switches with full functionality to be too expensive.

IGMP Snooping is a feature that allows the switch to listen in on the IGMP conversation between hosts and routers.

**Features:

**

* Simple Network Management Protocol SNMP v1, v2

* Rapid Spanning Tree RSTP Redundancy

* Web Based Management/Firmware Upgradable

1\. Easy Web Configuration

2\. Port Configurable, Statistics and Utilization

3\. Password Protection

2891660中文资料参数规格
技术参数

触点数 32

供电电流 400 mA

耗散功率 6 W

工作温度Max 70 ℃

工作温度Min -40 ℃

电源电压 24 VDC

输入电压 18.5VDC ~ 30.5VDC

封装参数

安装方式 DIN Rail

物理参数

工作温度 -40℃ ~ 70℃

其他

产品生命周期 Obsolete

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 5A991B

HTS代码 8517620050
