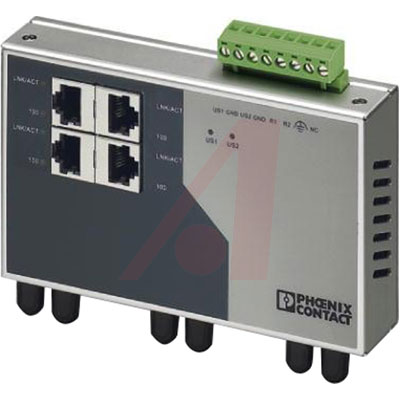

Ethernet Switch 7Port 10Mbps/100Mbps 100Mbps
These unmanaged switches provide a unique combination of affordability and maximum immunity against industrial environments. System startups and ongoing maintenance are reduced through a complete range of unmanaged switch functions such as redundant power supplies, alarm contact, auto negotiation and cable auto crossing. The FL Switch SF line provided connectivity to 8 or 16 copper 10/00 Mbps ports, including configurations, which support one or two multi-mode 100 Mbps glass-fiber ports.* Operating Temp: 0°C to +55°C +32°F to +131°F
* IP20 Protection
* Voltage Range: 18.5 VDC to 30.2 VDC
* Transmission Speed: 10/100 Mbps on RJ 45 Ports and 100 Mbps on Fiber-Optic Ports
* Maximum Network Segment Expansion: 100 m for Twisted Pair Cabling and up to 2 km for Glass-Fiber Cabling
* Alarm Contacts
* Autocross Function
* DIN-Rail Mounted
额定电压DC 24.0 V
额定电流 240 mA
供电电流 240 mA
工作温度Max 55 ℃
工作温度Min 0 ℃
电源电压 24 VDC
输入电压 18.5VDC ~ 30.2VDC
安装方式 DIN Rail
封装 100
长度 115 mm
封装 100
工作温度 0℃ ~ 55℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 5A991B1
HTS代码 8517620050
