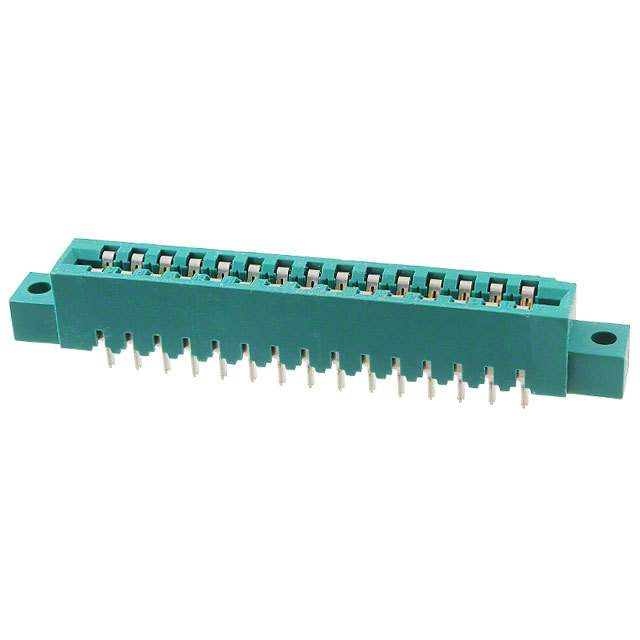

标准卡缘连接器 CONN LOW PRO 15 POS
Simplify connections between circuits with the use of this smart card connector from . This SKT connector"s 30 contacts that are made out of phosphor bronze and plated with gold. Its pitch is 3.96 mm. It has a straight body orientation. It has a socket type gender. 2-530655-4 is housed in green polyester. It uses the solder termination method.
触点数 30
极性 Female
触点电镀 Gold, Tin
排数 2
方向 Vertical
针脚数 30
额定电流Max 5A/触头
工作温度Max 105 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚间距 3.96 mm
高度 11.68 mm
引脚间距 3.96 mm
外壳颜色 Green
颜色 Green
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 105℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Bulk
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
