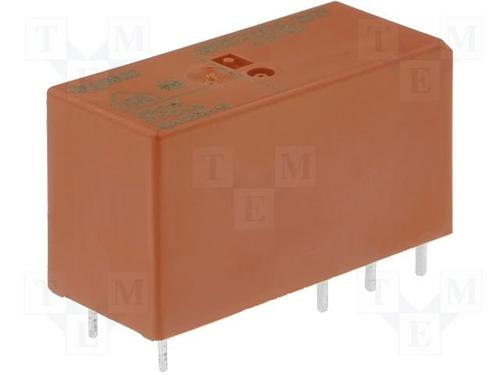

Relay: electromagnetic; DPDT; Ucoil:24VDC; 8A/250VAC; 8A/30VDC; 8A
RTE25024
Product Highlights
RT2 Series
Contact Arrangement = 2 Form C, DPDT, 2 C/O
Contact Current Rating = 8 Amps.
Monostable Coil Magnetic System
Without Coil Suppression Diode
得捷:
RTE25024
艾睿:
Power Relay 24VDC 15A DPDT29mm 12.7mm 15.7mm THT
安富利:
Electromechanical Relay DPDT 15A 24VDC 1.44KOhm Through Hole
Chip1Stop:
Electromechanical Relay 24VDC 1.44KOhm 15A DPDT 29x12.7x15.7mm THT Power Relay
TME:
Relay: electromagnetic; DPDT; Ucoil:24VDC; 8A/250VAC; 8A/30VDC; 8A
Verical:
Electromechanical Relay 24VDC 1.44KOhm 15A DPDT 29x12.7x15.7mm THT Power Relay
MASTER:
RTE25024
Powell:
Industrial Relays General Purpose
Online Components:
RTE25024
Electro Sonic:
RTE25024
Win Source:
RTE25024 /
触点电镀 Gold
输入电压DC 24.0 V
跌落电压 2.40 V
触点额定电流 8.00 A
线圈电压 24 VDC
线圈电流 16.67 mA
线圈功率DC 400 mW
线圈电阻 1.44 kΩ
额定电流Max 15 A
线圈电压DC 24 V
额定功率Max 2 kVA
开关电流Max 15 a
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压AC Max 400 V
安装方式 Through Hole
引脚数 8
封装 DIP
长度 29 mm
宽度 12.7 mm
高度 15.7 mm
封装 DIP
重量 14 g
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536908085
