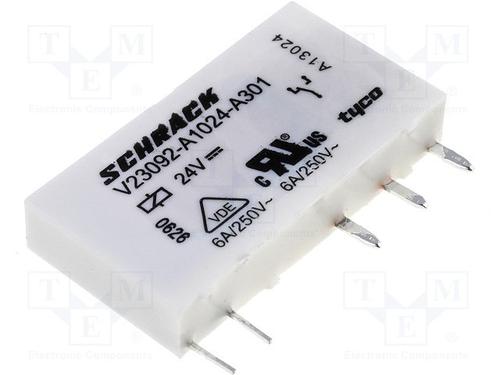

Electromechanical Relay SPDT 10A 24VDC 3.39KΩ Through Hole
V23092-A1024-A301
Product Highlights
Relay Type = Slim PCB Relay
Relay Style = PCB
SNR Series
Contact Arrangement = 1 Form C, SPDT, 1 C/O
Contact Current Rating = 6 A
艾睿:
Electromechanical Relay 24VDC 3.39KOhm 10A SPDT 28x5x15mm THT Slim PCB Relay
TME:
Relay: electromagnetic; SPDT; Ucoil:24VDC; 6A/250VAC; 6A/30VDC
Verical:
Electromechanical Relay 24VDC 3.39KOhm 10A SPDT 28x5x15mm THT Slim PCB Relay
MASTER:
V23092-A1024-A301
Powell:
Reinforced PCB Relays up to 8A
Online Components:
V23092-A1024-A301
Electro Sonic:
V23092-A1024-A301
触点电镀 Gold
额定电压AC 400 V
输入电压DC 24.0 V
触点类型 SPDT
跌落电压 1.20 V
触点额定电流 10 A
线圈电压 24 VDC
线圈电流 7.1 mA
线圈功率DC 170 mW
线圈电阻 3.39 kΩ
载流 6.00 A
额定电流Max 10 A
线圈电压DC 24 V
额定功率Max 1.5 KVA
额定电压AC Max 400 V
安装方式 Through Hole
引脚数 5
封装 SIP
宽度 5.00 mm
高度 15 mm
封装 SIP
触点材质 Silver Tin Oxide
重量 6 g
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
ELV标准 Compliant
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536410050
