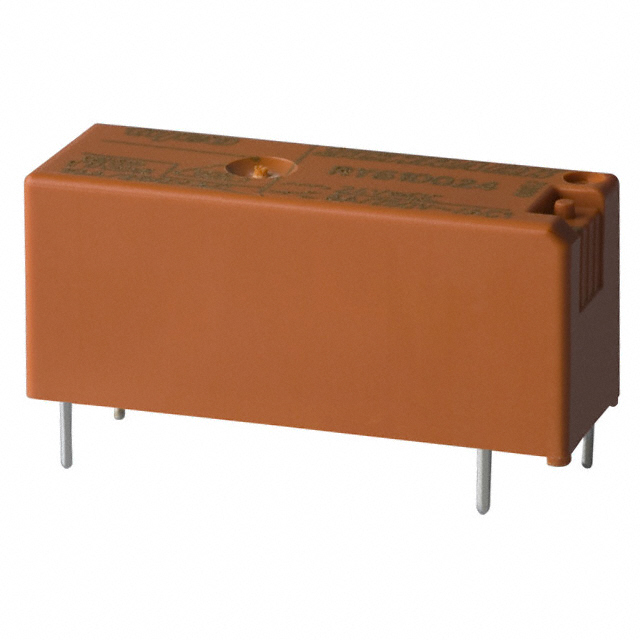

Power Relay 24VDC 8A SPST-NC 28.5mm 10.1mm 12.3mm Through Hole
Electromechanical Relay 24VDC 2.35KOhm 8A SPST-NC 28.5x10.1x12.3mm THT Power Relay
Product Highlights
RYII Series
Contact Arrangement = 1 Form B, SPST-NC, 1 N/C
Contact Current Rating = 8 Amps.
Monostable Coil Magnetic System
Without Coil Suppression Diode
得捷:
RELAY GEN PURPOSE SPST 8A 24V
艾睿:
Power Relay 24VDC 8A SPST-NC28.5x10.1x12.3mm THT
安富利:
Electromechanical Relay SPST-NC 8A 24VDC 2.35KOhm Through Hole
Chip1Stop:
Electromechanical Relay 24VDC 2.35KOhm 8A SPST-NC 28.5x10.1x12.3mm THT Power Relay
Verical:
Electromechanical Relay 24VDC 2.35KOhm 8A SPST-NC 28.5x10.1x12.3mm THT Power Relay
MASTER:
Electromechanical Relay 24VDC 2.35KOhm 8A SPST-NC 28.5x10.1x12.3mm THT Power Relay
Powell:
Industrial Relays General Purpose
Online Components:
Electromechanical Relay 24VDC 2.35KOhm 8A SPST-NC 28.5x10.1x12.3mm THT Power Relay
Electro Sonic:
Electromechanical Relay 24VDC 2.35KOhm 8A SPST-NC 28.5x10.1x12.3mm THT Power Relay
额定电压AC 400 V
输入电压DC 24.0 V
跌落电压 2.40 V
触点额定电流 8 A
线圈电压 24 VDC
线圈电流 10.21 mA
线圈功率DC 220 mW
线圈电阻 2.35 kΩ
额定电流Max 8 A
线圈电压DC 24 V
额定功率Max 2 kVA
开关电流Max 8 A
工作温度Max 70 ℃
工作温度Min -40 ℃
额定电压AC Max 400 V
安装方式 Through Hole
引脚数 4
长度 28.5 mm
宽度 10.1 mm
高度 12.3 mm
触点材质 Silver Cadmium Oxide
工作温度 -40℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410050
