Inductor High Current Toroid 120uH/53.5uH 15% 1kHz 4.1A 39mOhm DCR RDL
屏蔽 环形 器 39 毫欧最大 径向,水平(开放式)
得捷:
FIXED IND 120UH 4.1A 39 MOHM TH
立创商城:
120uH ±15% 4.1A 39mΩ
艾睿:

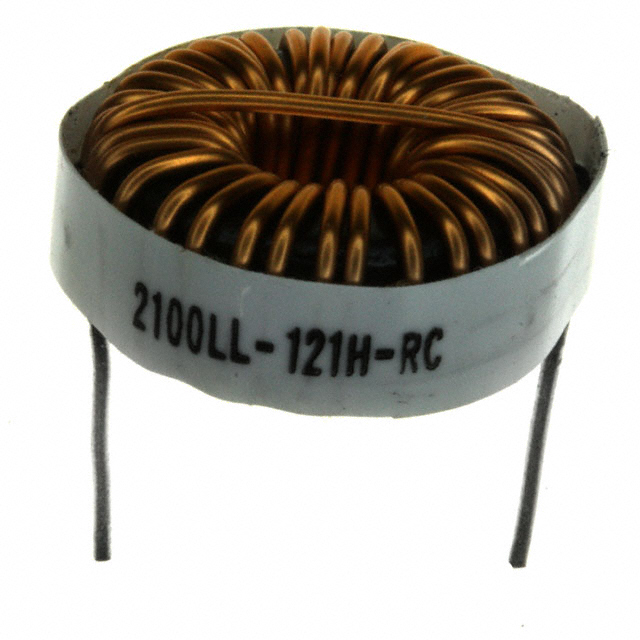

Your electrical design will benefit from this high current 2100LL-121-H-RC leaded inductor from Bourns. This part has a pitch of 19.3 mm. This leaded inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This leaded inductor has a maximum DC current of 4.1 A with a maximum resistance of 39m Ohm. This product is 11.43 mm tall with a diameter of 21.84 mm. Its test frequency is 1K Hz. It has a tolerance of 15%. It has an inductance of 120u/53.5uRated H. This device is made with toroid technology.
Verical:
Inductor High Current Toroid 120uH/53.5uH 15% 1KHz 4.1A 0.039Ohm DCR RDL
Electro Sonic:
Inductor High Current Toroid 120uH/53.5uH 15% 1KHz 4.1A 39mOhm DCR RDL
额定电流 4.1 A
容差 ±15 %
电感 53.5µH, 120µH OCL
屏蔽 No
测试频率 0.001 MHz
电阻DC) ≤39 mΩ
工作温度Max 125 ℃
工作温度Min -55 ℃
电阻DC Max 39 mΩ
安装方式 Through Hole
封装 Radial
宽度 0.45 in
高度 11.43 mm
直径 21.8 mm
脚长度 12.7 mm
封装 Radial
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
