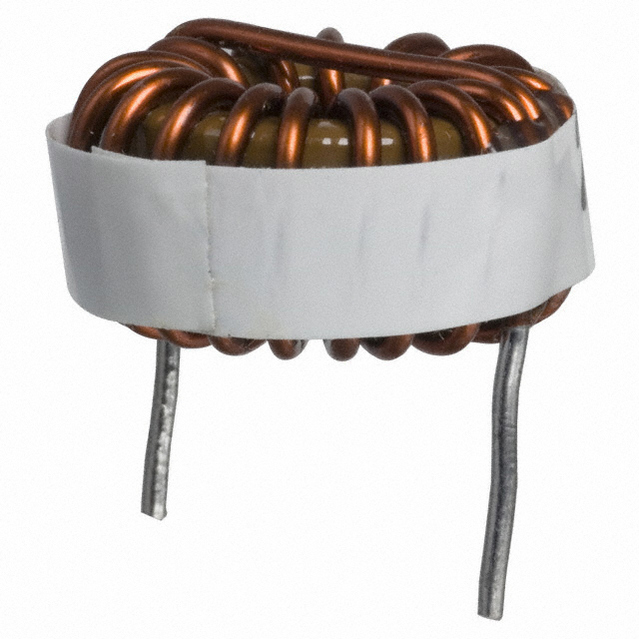

Inductor High Current Toroid 47uH/34.7uH 15% 1kHz 10A 28mOhm DCR RDL
47 µH 屏蔽 环形 器 10 A 28 毫欧最大 径向，水平（开放式）
得捷:
FIXED IND 47UH 10A 28 MOHM TH
艾睿:
This high current 2300HT-470-H-RC leaded inductor from Bourns resists changes in electric current passing through it. This part has a pitch of 28.7 mm. This leaded inductor has an operating temperature range of -55 °C to 200 °C. This leaded inductor has a maximum DC current of 10 A with a maximum resistance of 28m Ohm. Its test frequency is 1K Hz. This product is 16.51 mm tall with a diameter of 32.51 mm. It has an inductance of 47u/34.7uRated H. It has a tolerance of 15%. This device utilizes toroid technology.
安富利:
Ind High Current Toroid 47uH 15% 1KHz 10A RDL
MASTER:
Inductor High Current Toroid 47uH/34.7uH 15% 1KHz 10A 28mOhm DCR RDL
Electro Sonic:
Inductor High Current Toroid 47uH/34.7uH 15% 1KHz 10A 28mOhm DCR RDL
额定电流 10 A
容差 ±15 %
电感 47 µH
屏蔽 No
电感公差 ±15 %
测试频率 1 kHz
电阻DC） ≤28 mΩ
工作温度Max 200 ℃
工作温度Min -55 ℃
电阻DC Max 28 mΩ
安装方式 Through Hole
引脚数 2
封装 Radial
宽度 32.5 mm

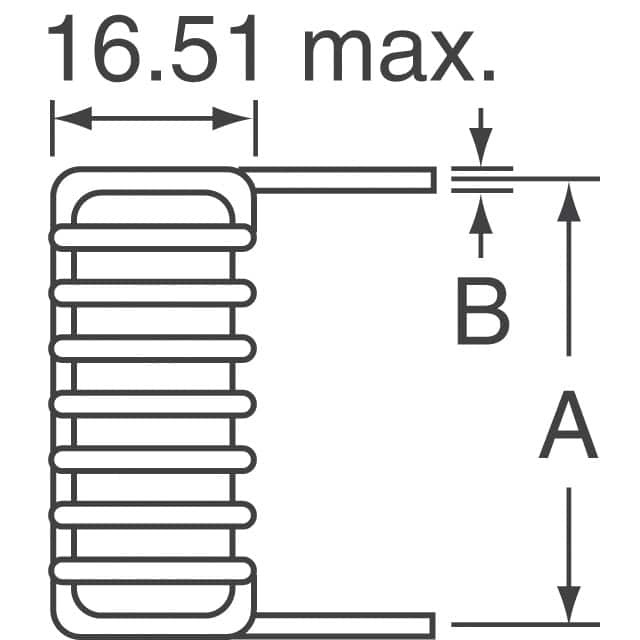

高度 16.51 mm
直径 32.5 mm
封装 Radial
工作温度 -55℃ ~ 200℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8504508000
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
2300HT-470-H-RC Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
2300HT-470-H 伯恩斯 | 类似代替 | 2300HT-470-H-RC和2300HT-470-H的区别 |
