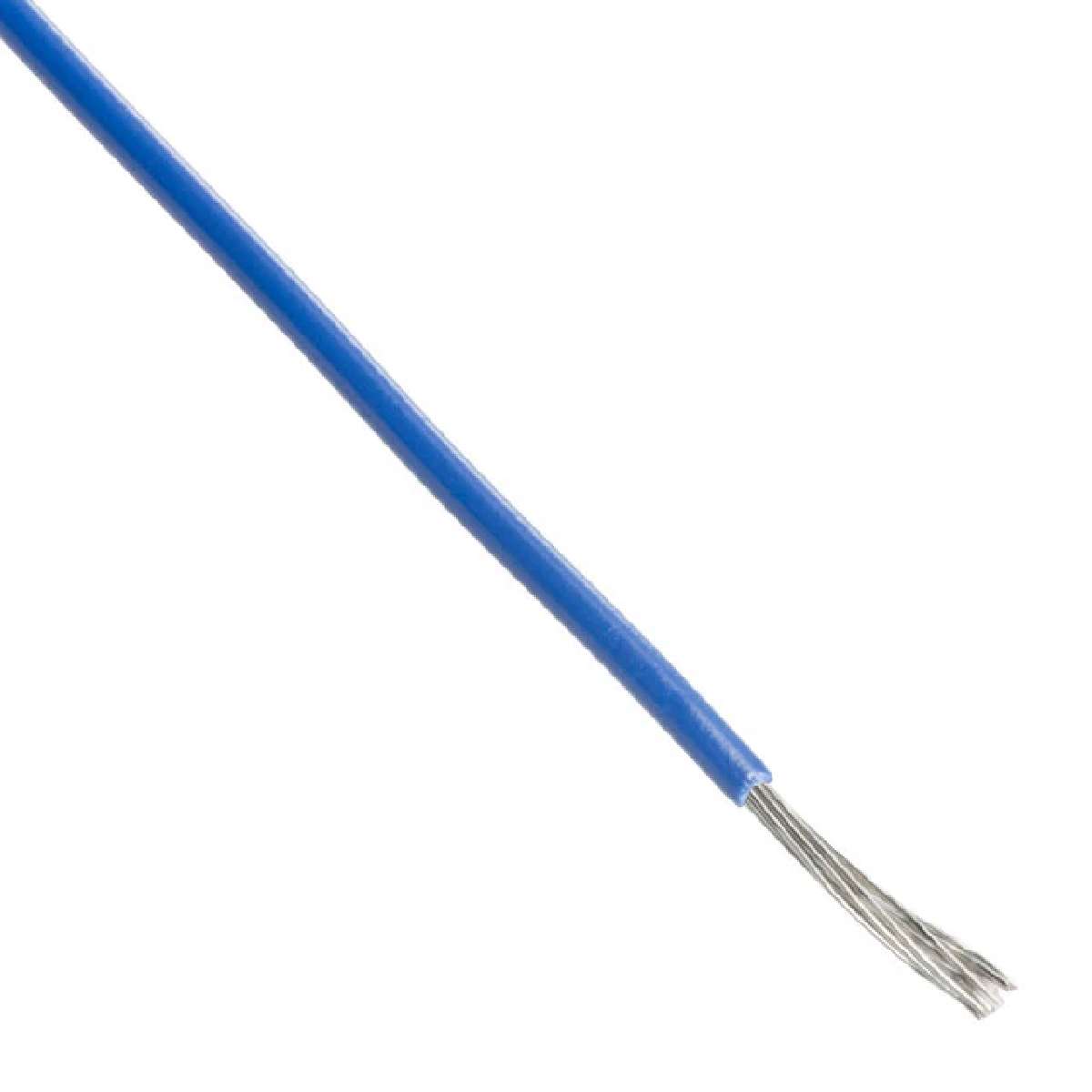

2845/7 BL001图片5
2845/7 BL001概述

Wire, Hook-Up; 22AWG; 7/30; 0.006in.; 0.042in.; -60℃; 250V; Blue

0.006 in. Insulation Thickness, High-Reliability TFE Teflon Insulated Hook-Up Wire

** Conductor:** Stranded tinned or solid silver plated copper. ** Insulation:** Color coded extruded TFE teflon. ** Nominal Insulation Thickness:** 0.006" 0.15 mm. ** Stocked Colors:** 0-9.

* Medical Electronic

* Power Supply Lead Wire


得捷:
HOOK-UP STRND 22AWG BLU 1000"


Allied Electronics:
Wire, Hook-Up; 22 AWG; 7/30; 0.006 in.; 0.042 in.; -60 degC; 250 V; Blue


2845/7 BL001中文资料参数规格
技术参数

线规 22 AWG

额定电压DC 250 V

工作温度Max 200 ℃

工作温度Min -60 ℃

额定电压 250 V

外形尺寸

长度 304.8 m

物理参数

颜色 Blue

绝缘材质 Teflon

工作温度 -60℃ ~ 200℃

导体材质 Copper

外壳材质 PTFE Polytetrafluoroethylene

其他

产品生命周期 Active

包装方式 Coil

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

数据手册

在线购买2845/7 BL001
型号: 2845/7 BL001
制造商: Alpha Wire
描述:Wire, Hook-Up; 22AWG; 7/30; 0.006in.; 0.042in.; -60℃; 250V; Blue
替代型号2845/7 BL001
型号/品牌 代替类型 替代型号对比

2845/7 BL001

Alpha Wire

当前型号

当前型号

2845/7 BL005

Alpha Wire

完全替代

2845/7 BL001和2845/7 BL005的区别
