2824 WH005概述

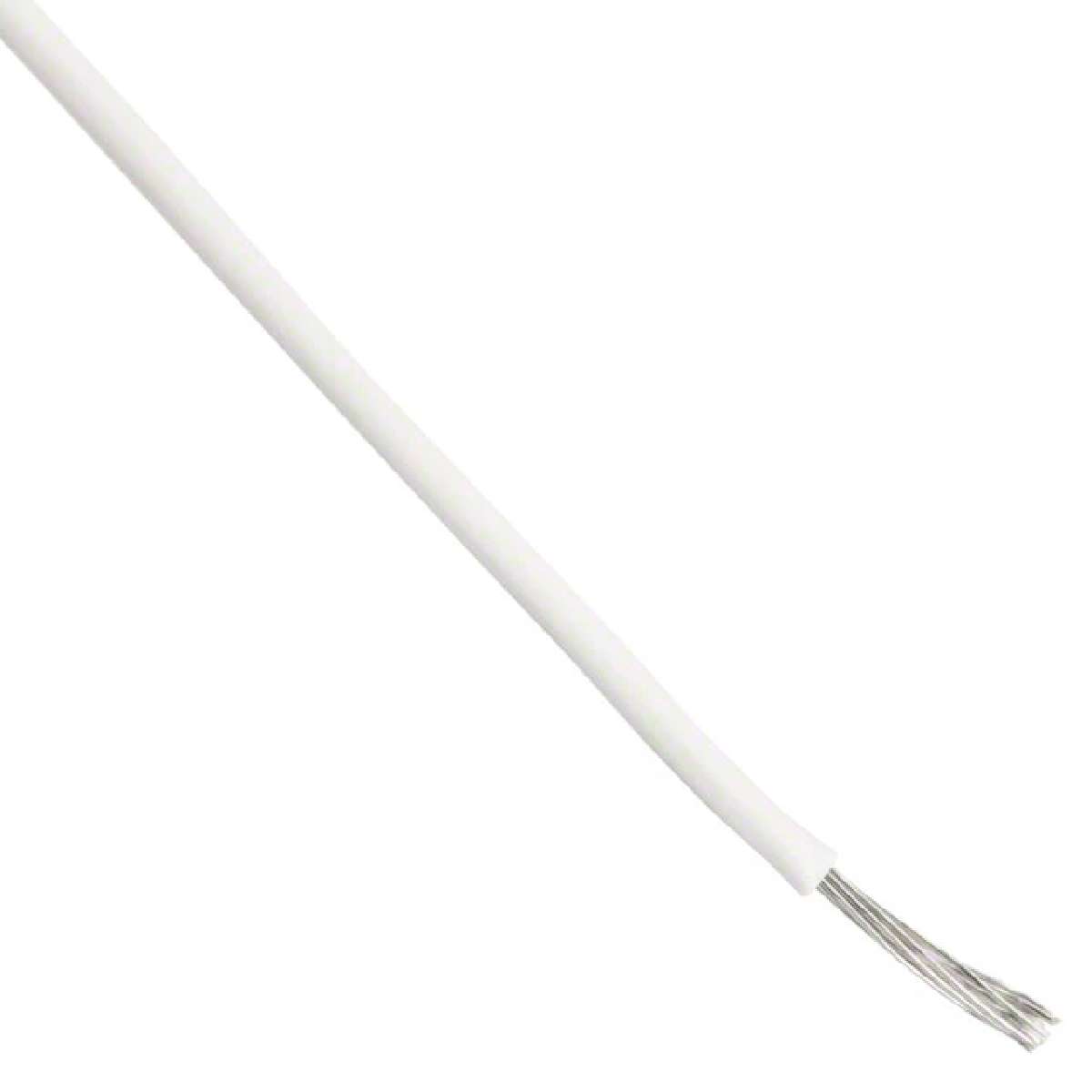

多芯电缆 22AWG 1C BRD SHLD 100 FT SPOOL WHITE
The is a 1-core Shielded Cable with silver-plated copper conductor and a PTFE insulator. This MIL-W-16878/4 type E single-core high/low temperature cable comes with a white PTFE jacket and silver-plated copper braid shield 90% minimum coverage. A braided copper shield provides good protection against higher frequency EMI.
- .
- NEMA HP3-EXBFE type
- .
- 7.9lbs Maximum pull tension
- .
- 68pf/ft at 1kHz Nominal ground capacitance
- .
- 0.04µH/ft Nominal inductance
2824 WH005中文资料参数规格
技术参数
线规 22 AWG
额定电压DC 600 V
屏蔽 Yes
芯数 1
额定电压 600 V
外形尺寸
长度 30.5 m
物理参数
颜色 White
工作温度 -55℃ ~ 200℃
导体材质 Copper
外壳材质 PTFE Polytetrafluoroethylene
其他
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power Management, Automation & Process Control, Aerospace, Defence, Military
符合标准
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2015/12/17
