2966249概述

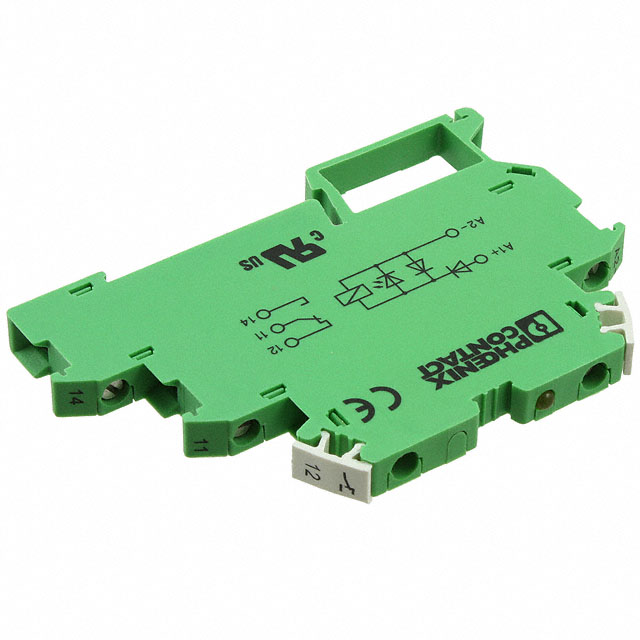

Electromechanical Relay 110VDC 120VAC 6A SPST-NO 6.2mm 80mm 94mm DIN Rail PLC Relay

**PLC-RSC Series**

PLC Interface single- and double-pole relays, and opto-couplers, having the same profile. This allows the modules to be installled in any configuration with a common bridging system and using the same accessories. The V8 adapter connects 8 relays or opto-couplers to a 15 way D-SUB cable.


艾睿:
Electromechanical Relay 110VDC 120VAC 6A SPST-NO 6.2x80x94mm DIN Rail PLC Relay


Allied Electronics:
PLC SENSOR RELAY BASE TERMINAL BLOCK


Verical:
PLC sensor relay, consisting of base terminal block PLC-BSC SEN with screw connection and pluggable miniature


Online Components:
Electromechanical Relay 110VDC 120VAC 6A SPST-NO6.2x80x94mm DIN Rail PLC Relay


Electro Sonic:
PLC-INTERFACE for input functions - consisting of PLC-BSC.../SEN basic terminal block with screw connection and plug-in miniature relay with power ...


2966249中文资料参数规格
技术参数

额定电压DC 250 V

额定电压AC 250 V

触点类型 SPDT

触点额定电流 6 A

线圈电流 3.5 mA

线圈电压AC 120 V

额定电流Max 6 A

线圈电压DC 110 V

额定功率Max 1.5 KVA

工作温度Max 55 ℃

工作温度Min -25 ℃

额定电压DC Max 250 V

额定电压AC Max 250 V

封装参数

安装方式 Screw, DIN Rail

外形尺寸

高度 94 mm

物理参数

工作温度 -25℃ ~ 55℃

其他

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买2966249
型号: 2966249
描述:Electromechanical Relay 110VDC 120VAC 6A SPST-NO 6.2mm 80mm 94mm DIN Rail PLC Relay
