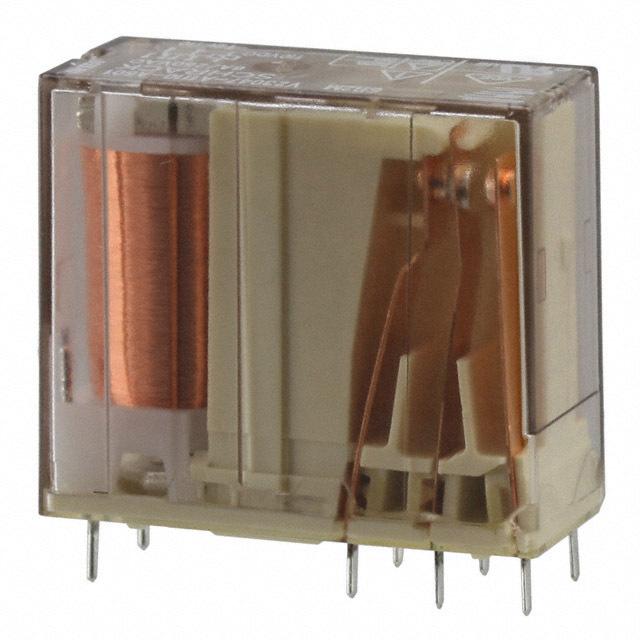

Electromechanical Relay 110VDC 17.285KΩ 6A SPST-NO/SPST-NC 29mm 12.6mm 25.5mm THT General Purpose Relay
V23047-A1110-A511
贸泽:
Safety Relays V23047-A1110-A511
艾睿:
Electromechanical Relay 110VDC 17.285KOhm 6A SPST-NO/SPST-NC 29x12.6x25.5mm THT General Purpose Relay
Allied Electronics:
V23047-A1110-A511, 2-1415012-1
安富利:
Electromechanical Relay DPST-NO/DPST-NC 6A 12VDC 206Ohm Through Hole
Verical:
Electromechanical Relay 110VDC 17.285KOhm 6A SPST-NO/SPST-NC 29x12.6x25.5mm THT General Purpose Relay
MASTER:
Power Relay 110VDC 6A SPST-NO/SPST-NC29x12.6x25.5mm THT
Powell:
Relays with Forcibly Guided Contacts Safety Relays
Online Components:
V23047-A1110-A511
Electro Sonic:
V23047-A1110-A511
额定电压AC 400 V
输入电压DC 12.0 V
触点额定电流 6 A
线圈电压 12 VDC
线圈电流 6.36 mA
线圈功率DC 700 µW
线圈电阻 206 Ω
额定电流Max 6 A
线圈电压DC 110 V
额定功率Max 1.5 KVA
开关电流Max 6 A
工作温度Max 70 ℃
工作温度Min -25 ℃
额定电压AC Max 400 V
接触电阻Max 100 mΩ
安装方式 Through Hole
引脚数 6
高度 25.5 mm
触点材质 Silver Nickel
工作温度 -25℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536410050
