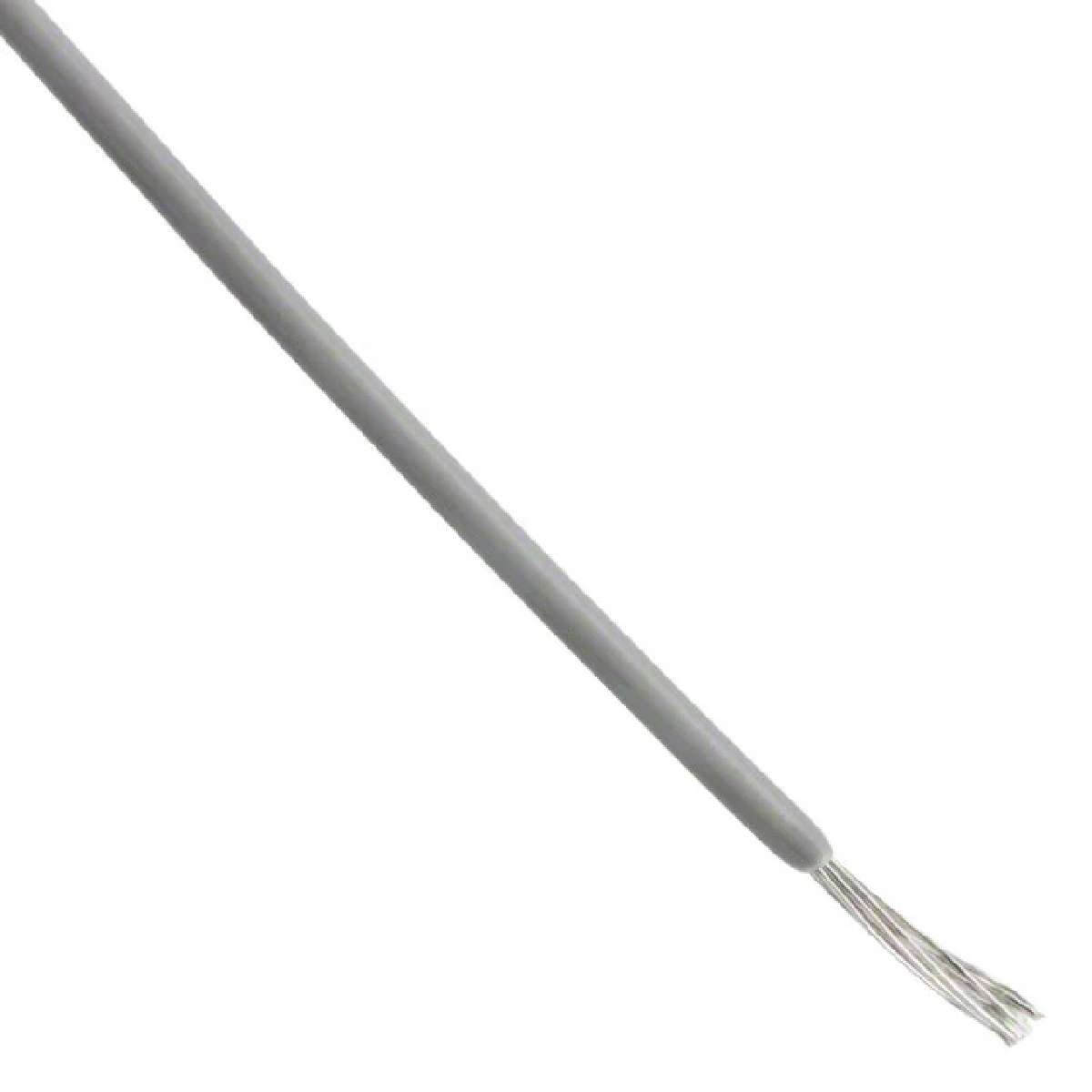

ALPHA WIRE 2258/1 SL001 Multiconductor Shielded Cable, Control, Slate, 1Conductor, 18AWG, 1000Ft, 304.8m
The is a 1-core Shielded Cable with tinned copper conductor and a PVC insulator. This single-core cable comes with a slate PVC jacket and bare copper spiral shield 95% coverage.
- .
- 14.5lbs Maximum pull tension
- .
- 143pf/ft at 1kHz Nominal ground capacitance
- .
- 0.05µH/ft Nominal inductance
线规 18 AWG
额定电压DC 300 V
屏蔽 Yes
芯数 1
额定电压 300 V
长度 304.8 m
颜色 Gray
工作温度 -20℃ ~ 80℃
导体材质 Tinned Copper
外壳材质 PVC
产品生命周期 Active
制造应用 Consumer Electronics, Portable Devices, Communications & Networking, Audio, Automation & Process Control, Security, Computers & Computer Peripherals, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
2258/1 SL001 Alpha Wire | 当前型号 | 当前型号 |
2258/1 SL005 Alpha Wire | 完全替代 | 2258/1 SL001和2258/1 SL005的区别 |
5060/15C SL001 Alpha Wire | 功能相似 | 2258/1 SL001和5060/15C SL001的区别 |
