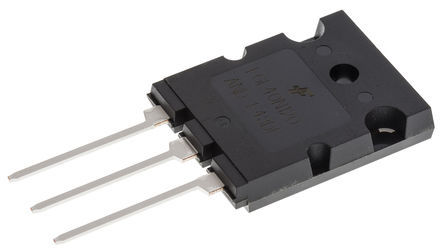

FAIRCHILD SEMICONDUCTOR 2SC5200OTU 单晶体管 双极, NPN, 250 V, 30 MHz, 150 W, 17 A, 80 hFE
The is a 250V NPN Epitaxial Silicon Transistor features high current capability and high power dissipation. Suitable for high fidelity audio output amplifier and general purpose power amplifier applications. This product is general usage and suitable for many different applications.
- .
- Excellent gain linearity for low THD
- .
- Complement to the 2SA1943/FJL4215
- .
- Wide SOA for reliable operation
- .
- High power dissipation 150W
- .
- High frequency 30MHz
- .
- High voltage VCEO = 250V
频率 30 MHz
针脚数 3
极性 NPN
耗散功率 150 W
击穿电压集电极-发射极 250 V
集电极最大允许电流 17A
最小电流放大倍数hFE 80 @1A, 5V
额定功率Max 150 W
直流电流增益hFE 80
工作温度Max 150 ℃
工作温度Min -50 ℃
耗散功率Max 150000 mW
安装方式 Through Hole
引脚数 3
封装 TO-264-3
长度 20 mm
宽度 5 mm
高度 26 mm
封装 TO-264-3
材质 Silicon
工作温度 -50℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
2SC5200OTU Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
FJL4315OTU 飞兆/仙童 | 类似代替 | 2SC5200OTU和FJL4315OTU的区别 |
MJL3281AG 安森美 | 功能相似 | 2SC5200OTU和MJL3281AG的区别 |
