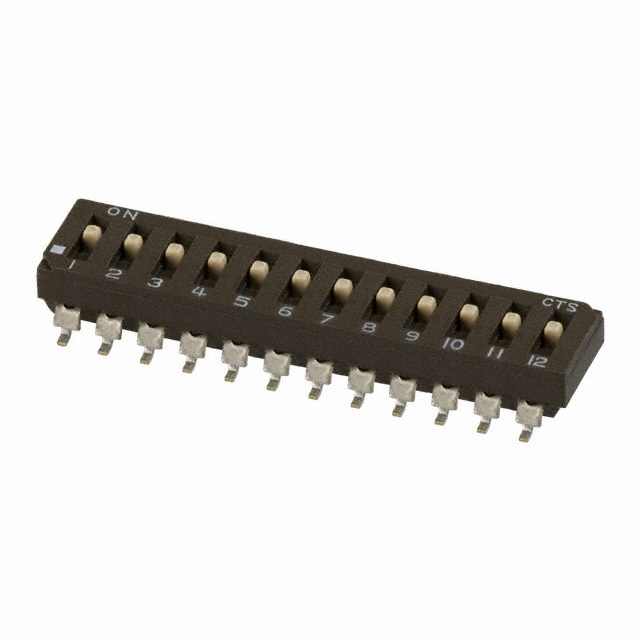

219-12MST

219 系列 单刀单掷 12 位置 自动置位 表面贴装 DIP 开关

Switch DIP ON OFF SPST 12 Raised Slide 0.1A 20VDC Gull Wing 2000Cycles 2.54mm SMD Tube

立创商城:
219-12MST

艾睿:
The 219-12MST dual in-line package switch, developed by CTS, can give you electronic flow control within your printed circuit board. This device has a maximum current rating of 0.1 A @ 20VDC. It has a SPST configuration. This DIP switch has a minimum operating temperature of -55 °C and a maximum of 85 °C. The 219-12MST DIP switch has a gull wing termination style. The maximum DC voltage rating is 20 VDC. This product&s;s terminal pitch is 2.54 mm. This product is 31.95 mm long, 4.3 mm tall and 9.91 mm deep.

安富利:
Switch DIP ON OFF SPST 12 Raised Slide 0.1A 20VDC Gull Wing 2.54mm SMD Tube

Chip1Stop:
Switch DIP ON OFF SPST 12 Raised Slide 0.1A 20VDC Gull Wing 2.54mm SMD Tube

Verical:
Switch DIP ON OFF SPST 12 Raised Slide 0.1A 20VDC Gull Wing 2000Cycles 2.54mm SMD Tube

MASTER:
Switch DIP ON OFF SPST 12 Raised Slide 0.1A 20VDC Gull Wing 2000Cycles 2.54mm SMD Tube

Online Components:
Switch DIP ON OFF SPST 12 Raised Slide 0.1A 20VDC Gull Wing 2000Cycles 2.54mm SMD Tube

Electro Sonic:
Switch DIP ON OFF SPST 12 Raised Slide 0.1A 20VDC Gull Wing 2000Cycles 2.54mm SMD Tube
