DIP, Rotary DIP, SIP Switches and DIP Shunts - Standard
DIP SPST 6 位置 通孔 摇臂 触动器 60mA 5VDC
艾睿:

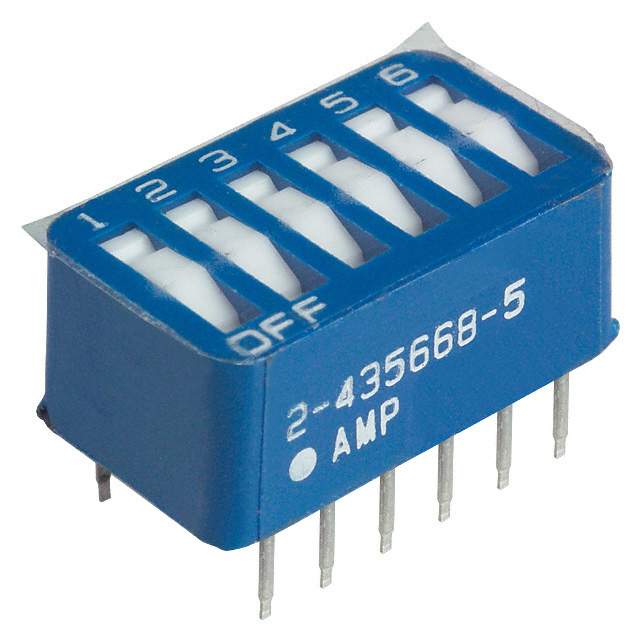

Thanks to the 2-435668-5 dual in-line package switch from TE Connectivity, you can ensure that there is some type of current flow control within your printed circuit. It has a SPST configuration. This device has a maximum current rating of 0.06 A @ 5VDC. This DIP switch has a minimum operating temperature of -55 °C and a maximum of 105 °C. The 2-435668-5 DIP switch has a PC pin termination style. The maximum DC voltage rating is 24 VDC. This product&s;s terminal pitch is 2.54 mm. This product is 17.27 mm long, 7.37 mm tall and 9.65 mm deep.
安富利:
Switch DIP OFF ON SPST 6 Recessed Rocker 0.06A 24VDC PC Pins 2.54mm Thru-Hole
Verical:
Switch DIP OFF ON SPST 6 Recessed Rocker 0.06A 24VDC PC Pins 2.54mm Thru-Hole
MASTER:
SWITCH ASSY, DIP, TYPE C, 7100 SERIES, SPST, LOW PROFILE
Powell:
DIP, Rotary DIP, SIP Switches and DIP Shunts - Standard
Online Components:
DIP SW 6 POSN W/TAPE AU
Electro Sonic:
DIP SW 6 POSN W/TAPE AU
触点电镀 Gold, Gold over Nickel
额定电压DC 24 V
接触器类型 Rocker
额定电流 60 mA
方向 Vertical
触点类型 SPST
易燃性等级 UL 94 V-0
针脚数 6
额定电流Max 0.06A @5VDC
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 5 VDC
额定电压DC Max 24 V
接触电阻Max 50 mΩ
安装方式 Through Hole
引脚间距 2.54 mm
长度 17.27 mm
宽度 9.65 mm
高度 7.37 mm
引脚间距 2.54 mm
外壳颜色 Blue
触点材质 Copper Alloy
工作温度 -55℃ ~ 105℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536509065
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
2-435668-5 TE Connectivity 泰科 | 当前型号 | 当前型号 |
3-435640-7 泰科 | 完全替代 | 2-435668-5和3-435640-7的区别 |
435668-5 泰科 | 完全替代 | 2-435668-5和435668-5的区别 |
BD06 C&K Components | 功能相似 | 2-435668-5和BD06的区别 |
