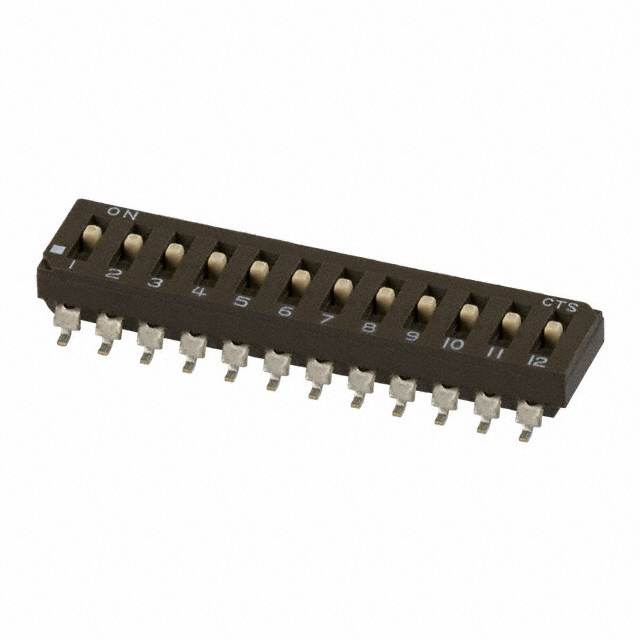

219-12LPST

219 系列 单刀单掷 12 位置 自动置位 表面贴装 DIP 开关

Switch DIP ON OFF SPST 12 Flush Slide 0.1A 20VDC Gull Wing 2000Cycles 2.54mm SMD Tube

贸泽:
DIP Switches / SIP Switches SPST 12 switch sections

艾睿:
Use CTS&s;s 219-12LPST dual in-line package switch to easily control different electric paths on a printed circuit board. It has a SPST configuration. This device has a maximum current rating of 0.1 A @ 20VDC. This DIP switch has an operating temperature range of -55 °C to 85 °C. The 219-12LPST DIP switch has a gull wing termination style. This product&s;s terminal pitch is 2.54 mm. This product is 31.95 mm long, 4.05 mm tall and 9.91 mm deep. The maximum DC voltage rating is 20 VDC.

Chip1Stop:
Switch DIP ON OFF SPST 12 Flush Slide 0.1A 20VDC Gull Wing 2.54mm SMD Tube

Verical:
Switch DIP ON OFF SPST 12 Flush Slide 0.1A 20VDC Gull Wing 2.54mm SMD Tube

Online Components:
Switch DIP ON OFF SPST 12 Flush Slide 0.1A 20VDC Gull Wing 2000Cycles 2.54mm SMD Tube

Electro Sonic:
Switch DIP ON OFF SPST 12 Flush Slide 0.1A 20VDC Gull Wing 2000Cycles 2.54mm SMD Tube
