2TP7-2

2TP7-2图片1

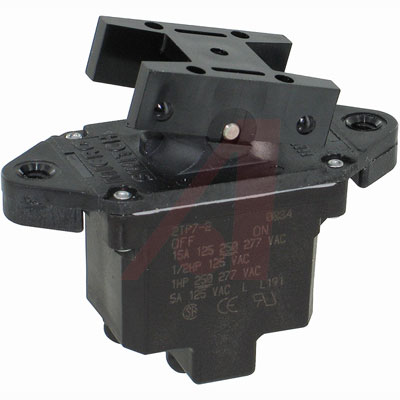

2TP7-2图片2
2TP7-2图片3

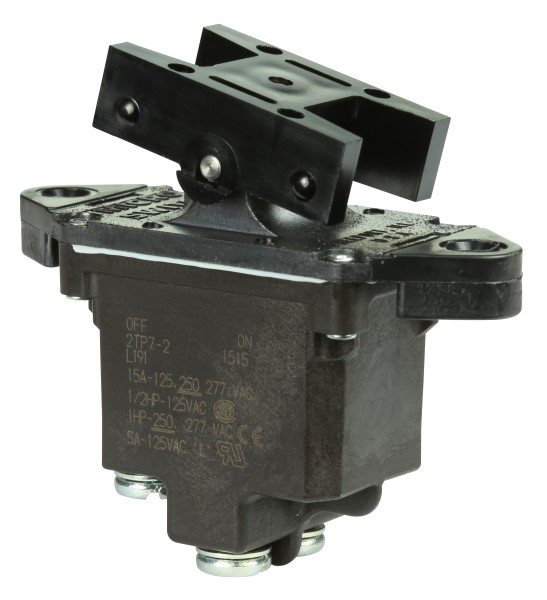

2TP7-2图片4
2TP7-2概述

翘板开关 2P 2 Position Screw Terminals

** TP Series Rocker Switches**

The TP series Micro Switch™ rocker switches have been designed to offer the user the choice of either mounting the switch flush with the panel for a low-button profile or above the panel for a distinct button appearance. The buttons are both removable and interchangeable and come in a wide selection of appearances to choose from, including transparent, translucent plastic and six opaque plastic Colors.

2TP7-2中文资料参数规格
技术参数

额定电压AC 125 V

额定电流 15A AC

触点类型 DPST

额定电流Max 20A @28VDC

工作温度Max 71 ℃

工作温度Min -54 ℃

额定电压DC Max 250 V

额定电压AC Max 277 V

封装参数

安装方式 Panel

外形尺寸

长度 55.12 mm

宽度 22.6 mm

高度 44.45 mm

物理参数

触点材质 Silver Cadmium Oxide

工作温度 -54℃ ~ 71℃

其他

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536509040

数据手册

在线购买2TP7-2
型号: 2TP7-2
描述:翘板开关 2P 2 Position Screw Terminals
