Cable; 2; 22AWG; 7/30; Aluminum/Polyester; 0.16in.; 0.008in.; 0.019in.; PVC

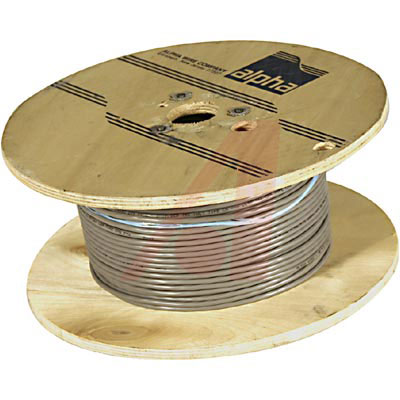

The is a 500ft 2-pair shielded Communication and Control Cable with stranded tinned copper conductors and polypropylene insulation. The cable has aluminium/polyester foil shield with 25% minimum overlap, that goes beyond the ordinary conditions to satisfy rigorous requirements of EMI performance, transmission distances, flexibility and temperature extremes.
- .
- 25lb Maximum pull tension
- .
- 60R Characteristic impedance
- .
- 25pf/ft at 1kHz Mutual capacitance nominal
- .
- 0.18µH/ft Nominal inductance
- .
- -20 to 75°C Temperature range
线规 22 AWG
额定电压DC 400 V
易燃性等级 CSA FT-4
屏蔽 Yes
芯数 4
额定电压 300 V
长度 500 ft
颜色 Slate
绝缘材质 Polypropylene
工作温度 -20℃ ~ 75℃
导体材质 Tinned Copper
外壳材质 PVC
产品生命周期 Active
包装方式 Bulk
制造应用 Automation & Process Control, Communications & Networking, Industrial, Computers & Computer Peripherals, Audio, Communications & Networking, Computers & Computer Peripherals,
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
