2027-23-BLF

2027 系列气体放电管 20kA/10A高浪涌电流额定值，低插入损耗 在整个寿命期间保持稳定击穿 应用于电信、工业、商业、汽车和飞机电子 ### 标准UL 认证。### 瞬态电压抑制器（充气）

2027 系列气体放电管 20kA/10A

高浪涌电流额定值，低插入损耗

在整个寿命期间保持稳定击穿

应用于电信、工业、商业、汽车和飞机电子

### 标准

UL 认证。

欧时:
### 2027 系列气体放电管 20kA/10A高浪涌电流额定值，低插入损耗 在整个寿命期间保持稳定击穿 应用于电信、工业、商业、汽车和飞机电子 ### 标准UL 认证。### 瞬态电压抑制器（充气）

立创商城:
2027-23-BLF

e络盟:
气体放电管

艾睿:

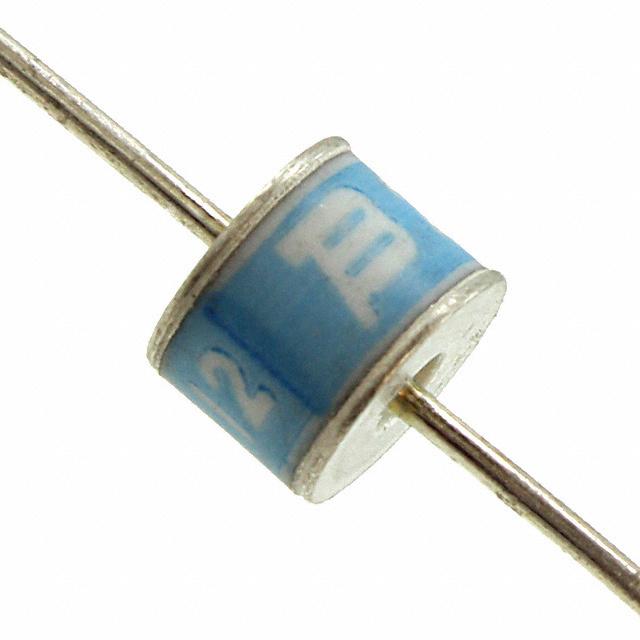

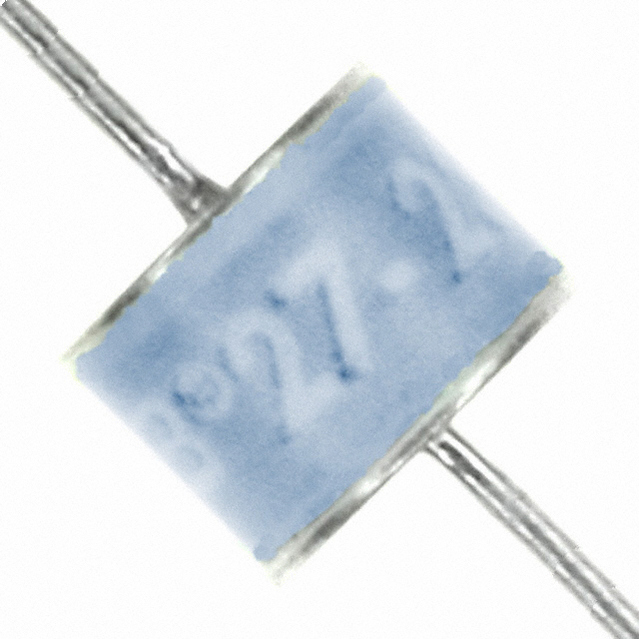

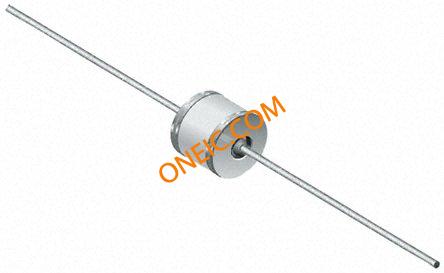

Ideal for outdoor systems this 2027-23-BLF gas discharge tube from Bourns will dissipate voltage transient to safely get rid of voltage spikes. Its DC sparkover voltage is 230 V with a tolerance of ±15%, and its impulse discharge current 8x20 us, 10 Hits is 10 A. This GDT has a minimum operating temperature of -55 °C and a maximum of 85 °C. It has 2 terminals/electrodes. The 2027-23-BLF GDT has an axial termination style. This part has a lead diameter of 0.8 mm. This product is 6 mm long, 8 mm tall and 8 mm deep.

Allied Electronics:
Tube, Gas Discharge; 8mm Dia., 6mm Long2 Electrode; 1 pF @ 1 MHz, 230V

安富利:
Surge Arrestor 2-Pole Gas Discharge Tube 230VDC 25kA Thru-Hole Bulk

Chip1Stop:
Gas Discharge Tubes 230VDC 10KADC 10AAC 1pF Axial Thru-Hole

Verical:
Gas Discharge Tubes 230VDC 10kADC 10AAC 1pF Axial Thru-Hole Automotive

Newark:
# BOURNS  2027-23-BLF  Gas Discharge Tube GDT, Precision, 2027 Series, 230 V, Axial Leaded, 20 kA, 675 V

MASTER:
Gas Discharge Tubes 230VDC 10kADC 10AAC 1pF Axial Thru-Hole Automotive

Electro Sonic:
Gas Discharge Tubes 230VDC 10kADC 10AAC 1pF Axial Thru-Hole Automotive
