2404C SL005

2404C SL005图片1
2404C SL005图片2
2404C SL005图片3
2404C SL005图片4
2404C SL005图片5
2404C SL005概述

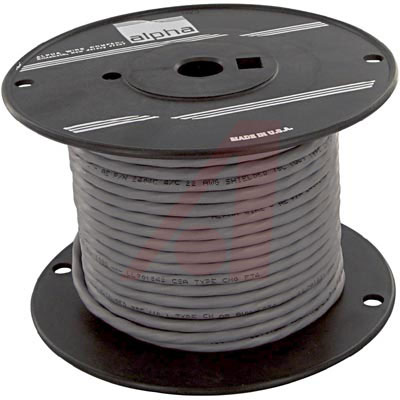

ALPHA WIRE 2404C SL005 Multiconductor Shielded Cable, Control, Slate, 4Conductor, 22AWG, 0.357mm², 100Ft, 30.5m

Cables intended for general purpose communication use within buildings in accordance with the NEC Sections 800-53c 725-53e.

.
Stranded tinned copper conductor
.
Grey PVC jacket with colour coded PE insulation
.
Operating temperature range -20°C to +75°C

得捷:
CABLE 4CON 22AWG SLATE SHLD 100"


欧时:
MULTICONDUCTOR FOIL SHIELD CABLE 2404C


艾睿:
Communication Cable Tape Flame Retardant High Density Polyethylene 4Conductors 22AWG 5.2mm 300VAC Slate 30.48m Spool


Allied Electronics:
Cble; Shielded; 4 Cond; 22 AWG; 7x30; Foil Shld; PE Ins; Gry; PVC Jkt; TC; A/P


TME:
Wire; 4x22AWG; stranded; Cu; shielded; PVC; dark grey; 30,5m; 300V


Newark:
# ALPHA WIRE  2404C SL005  Multiconductor Shielded Cable, Control, Slate, 4 Conductor, 22 AWG, 0.357 mm², 100 ft, 30.5 m


2404C SL005中文资料参数规格
技术参数

线规 22 AWG

额定电压DC 300 V

屏蔽 Yes

芯数 4

工作温度Max 75 ℃

工作温度Min -20 ℃

额定电压Max 300 VAC

额定电压 300 V

外形尺寸

长度 30.5 m

物理参数

颜色 Gray

绝缘材质 PVC

工作温度 -20℃ ~ 75℃

导体材质 Tinned Copper

外壳材质 PVC

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

数据手册

在线购买2404C SL005
型号: 2404C SL005
制造商: Alpha Wire
描述:ALPHA WIRE 2404C SL005 Multiconductor Shielded Cable, Control, Slate, 4Conductor, 22AWG, 0.357mm², 100Ft, 30.5m
