2471 SL005

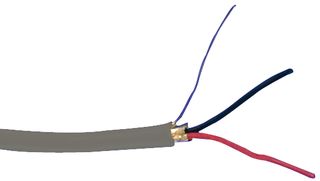

ALPHA WIRE 2471 SL005 Multipair Screened Cable, Communication, Slate, 1 Pair, 16AWG, 100Ft, 30.5m

The is a 100ft 1-pair 16AWG Shielded Cable with tinned copper conductor and a slate PVC jacket. The multipair cable comes with aluminium/Mylar tape shield and a polypropylene insulation. This cable meets special needs, such as low capacitance for extended transmission of digital signals, such as the extra flexibility of rubber insulation and jacket for electrically noisy environments.

.

53lbs Maximum pull tension

.

20.5pf/ft at 1kHz Nominal mutual capacitance

.

0.2µH/ft Nominal inductance

.

4.3R/1000ft at 20°C Nominal conductor DC resistance DCR

.

7R/1000ft at 20°C Nominal conductor DC resistance DCR
