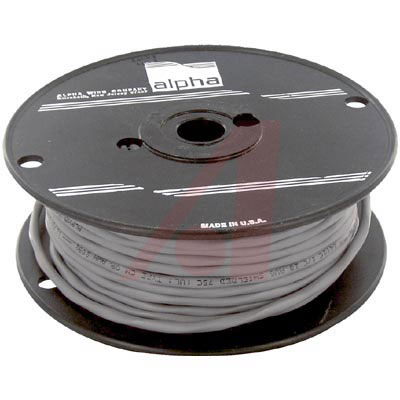

ALPHA WIRE 2412C SL005 Multiconductor Shielded Cable, Control, Slate, 2Conductor, 20AWG, 0.562mm², 100Ft, 30.5m
The is a 100ft 2-conductor 20AWG 300V slate shielded Communication and Control Cable with stranded tinned copper conductors, polyethylene insulation, aluminium/polyester foil shield, foil facing outward stranded tinned copper drain wire, slate PVC jacket. Foil shield, 25% overlap minimum, for moderate EMI needs. Conductors are identified by different colours.
- .
- High performance
- .
- 0.51mm Jacket thickness
- .
- REACH regulation EC 1907/2006
线规 20 AWG
额定电压DC 300 V
屏蔽 Yes
芯数 2
工作温度Max 75 ℃
工作温度Min -20 ℃
额定电压Max 300 VAC
额定电压 300 V
长度 30.5 m
颜色 Black, Red
绝缘材质 PVC
工作温度 -20℃ ~ 75℃
导体材质 Tinned Copper
外壳材质 PVC
产品生命周期 Active
包装方式 Bulk
制造应用 Sensing & Instrumentation, Security, Computers & Computer Peripherals, Automation & Process Control, Imaging, Video & Vision, Audio, Communications & Networking, Industrial, Commercial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
