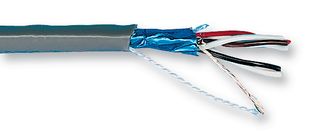

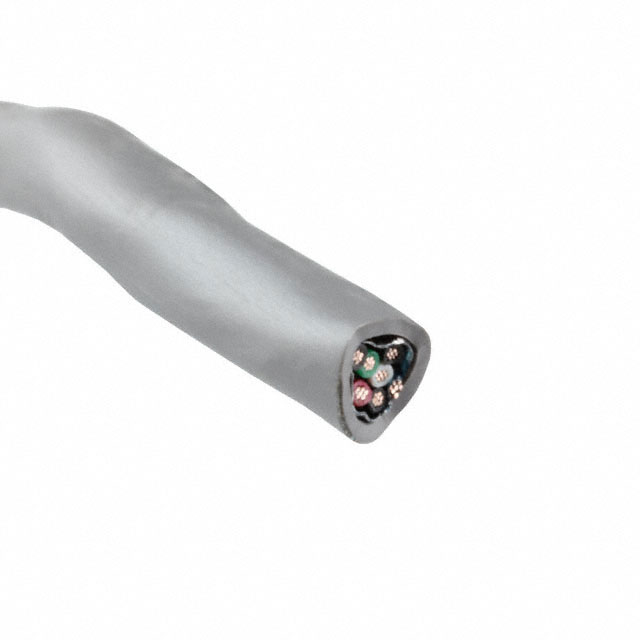

Multipair Screened Cable, Communication, Slate, 3 Pair, 22AWG, 0.35mm², 100Ft, 30.5m
The is a 100ft 3-pair shielded Communication and Control Cable with stranded tinned copper conductors and PVC insulation. The cable has aluminium/polyester foil shield with 25% minimum overlap, the foil facing outward stranded tinned copper drain wire equal in size to conductor.
得捷:
MULTI-PAIR 6CON 22AWG SLATE 100"
Newark:
Multipair Shielded Cable, Communication, Slate, 3 Pair, 22 AWG, 0.35 mm², 100 ft, 30.5 m
线规 22 AWG
额定电压DC 150 V
屏蔽 Yes
芯数 6
额定电压 150 V
长度 30.5 m
颜色 Slate
工作温度 -20℃ ~ 80℃
导体材质 Tinned Copper
外壳材质 PVC
产品生命周期 Active
包装方式 Bulk
制造应用 Audio, Communications & Networking, Computers & Computer Peripherals, Security, Automation & Process Control
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
2213C SL005 Alpha Wire | 当前型号 | 当前型号 |
86312CY SL001 Alpha Wire | 功能相似 | 2213C SL005和86312CY SL001的区别 |
2213C SL001 Alpha Wire | 功能相似 | 2213C SL005和2213C SL001的区别 |
2213C SL002 Alpha Wire | 功能相似 | 2213C SL005和2213C SL002的区别 |
