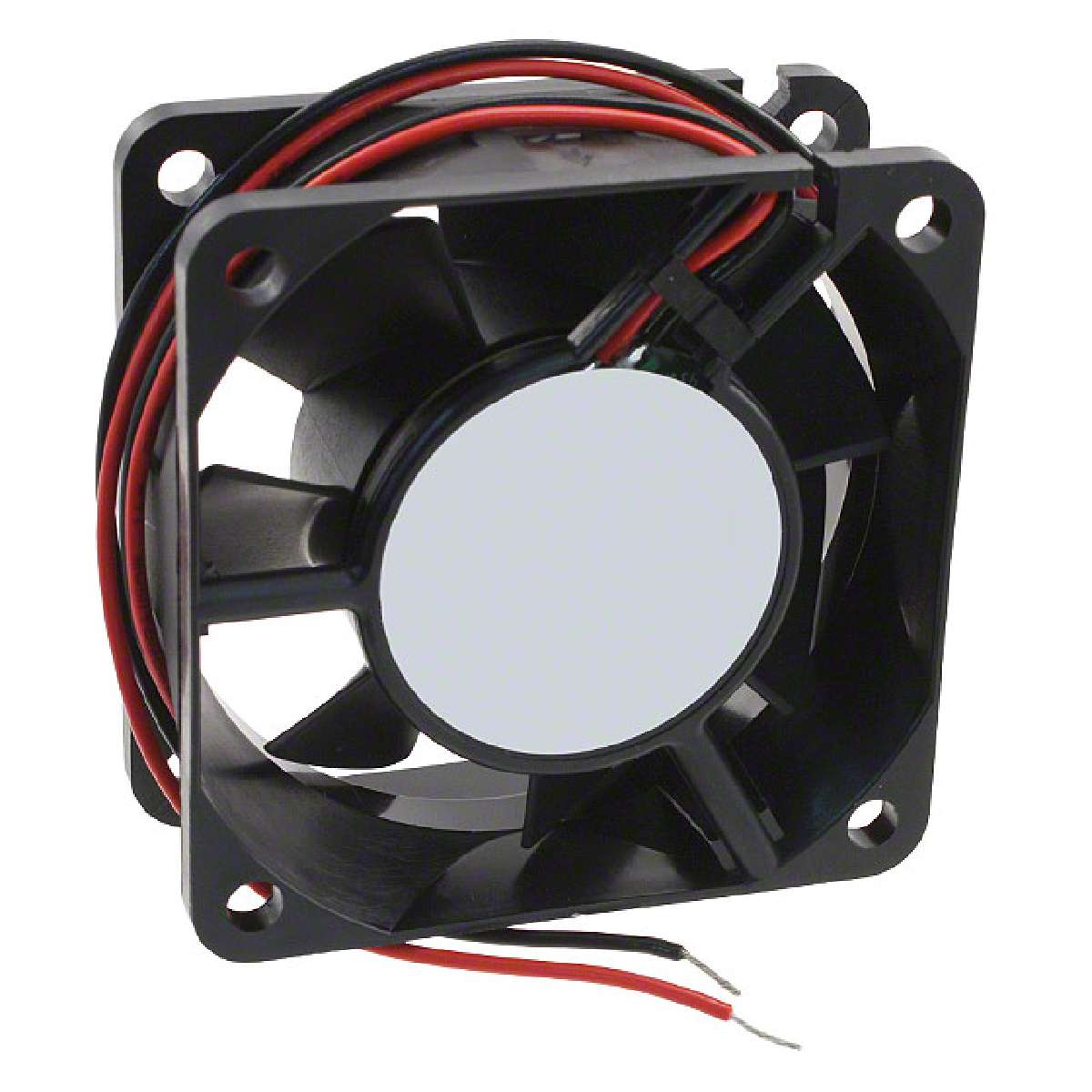

2410ML-05W-B30-E00

NMB TECHNOLOGIES  2410ML-05W-B30-E00  轴流风扇, 接线引脚, 无刷电机, 滚珠, 2410ML系列, 24 VDC, 60 mm, 25 mm, 19 cu.ft/min, 0.54 m³/min

The 2410ML series standard DC Axial Fan commonly used in PC/PSU and fan tray applications. In addition, this series offers a range of high performance fans with enhanced reliability and brushless. Environmental protection and control features for high end applications, typical of server and telecommunication equipment applications.

.

Brushless motor structure

.

Class E insulation

.

PWM Control for fan

.

Protection against the ingress of dust and water

.

Motor and PCB fully encapsulated in silicone rubber material

.

Motor burnout is prevented by locked rotor protection/automatic restart and polarity

.

Open collector for both locked rotor and tach output circuit

.

700VAC/sec Dielectric withstand voltage

.

10MR at 500VDC Minimum insulation resistance
