2972136概述

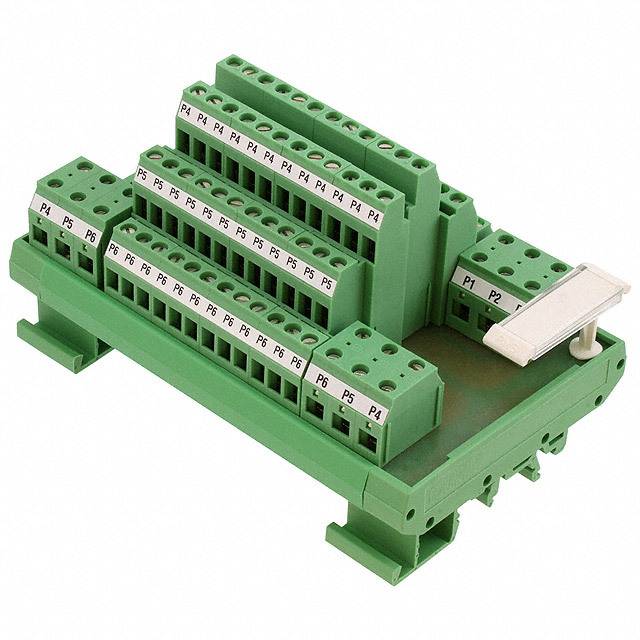

"Phoenix 2972136 UMK- PVB 6 Varioface Interface Module 250V AC-DC, 16A, Screw Connection, "

Varioface Module, Screw Connection Type

* Stripping length 8 mm

With six equipotential busbars P1, P2, P3, P4, P5, P6 for potential distribution, for mounting on NS 35/7.5 or NS 32.


得捷:
POWER DISTRIBUTION BLOCK 6POS


艾睿:
VARIOFACE module, with six equipotential busbars P1, P2, P3, P4, P5, P6 for potential distribution, for mounting on NS 35/7.5 or NS 32


Allied Electronics:
Conn; InterfaceModule; Screw; 24-12AWG; 250VAC/VDCNom.; 77mmLx123.8mmWx72mmH


Verical:
VARIOFACE module, with six equipotential busbars P1, P2, P3, P4, P5, P6 for potential distribution, for mounting on NS 35/7.5 or NS 32


MASTER:
VARIOFACE module with six equipotential busbars P1 P2 P3 P4 P5 P6 for potential distribution for mounting on NS 35/7.5 or NS 32


Online Components:
VARIOFACE Module ST


Electro Sonic:
VARIOFACE module - with six equipotential busbars P1 - P2 - P3 - P4 - P5 - P6 for potential ...


2972136中文资料参数规格
技术参数

工作温度Max 50 ℃

工作温度Min -20 ℃

额定电压 250 VAC

封装参数

安装方式 Panel

外形尺寸

长度 77.0 mm

宽度 123.8 mm

高度 77 mm

物理参数

颜色 Green

工作温度 -20℃ ~ 50℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536904000

数据手册

在线购买2972136
型号: 2972136
描述:"Phoenix 2972136 UMK- PVB 6 Varioface Interface Module 250V AC-DC, 16A, Screw Connection, "
