2-1437667-6

Buchanan- 4 位置 8.26 mm 单排 双栅栏式端子条- 4DB-P108-04

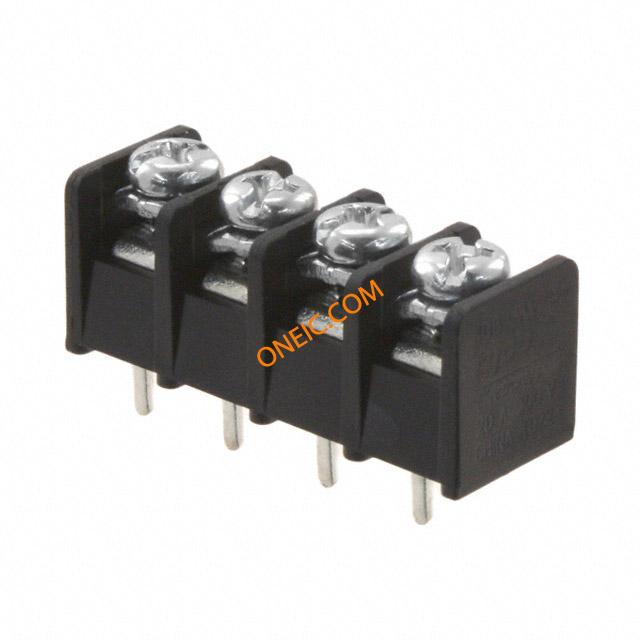

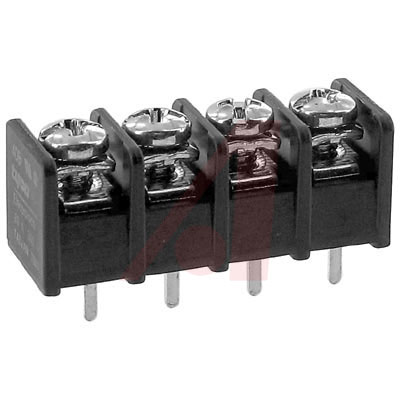

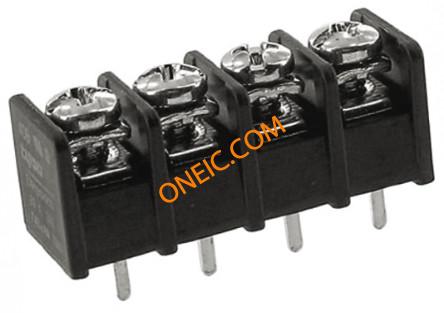

Barrier Strip, 22 to 12 AWG Wire Size, Single Level, Flat Base Style

** Material** : ** Terminals** : Bright acid tin over copper alloy. ** Screws** : #6-32 steel, zinc plating with clear chromate coating. Wire clamping screws and binding head screws available.

Barrier strip with printed circuit pin terminal style.

贸泽:
Barrier Terminal Blocks 4DB-P108-04

艾睿:

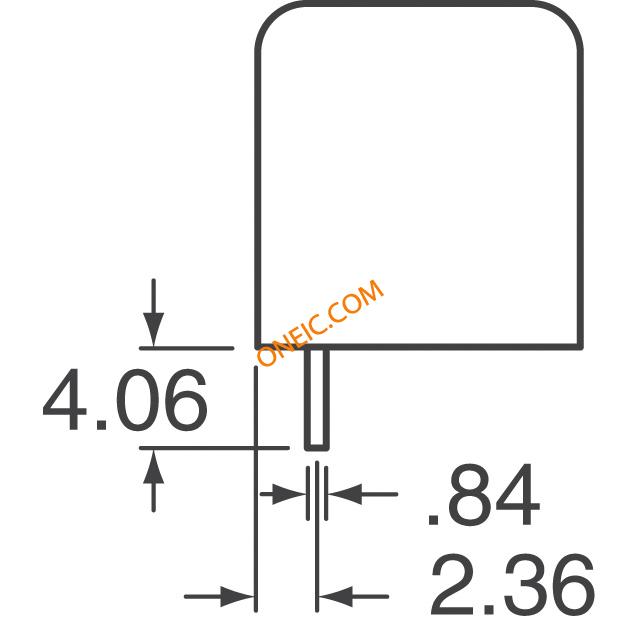

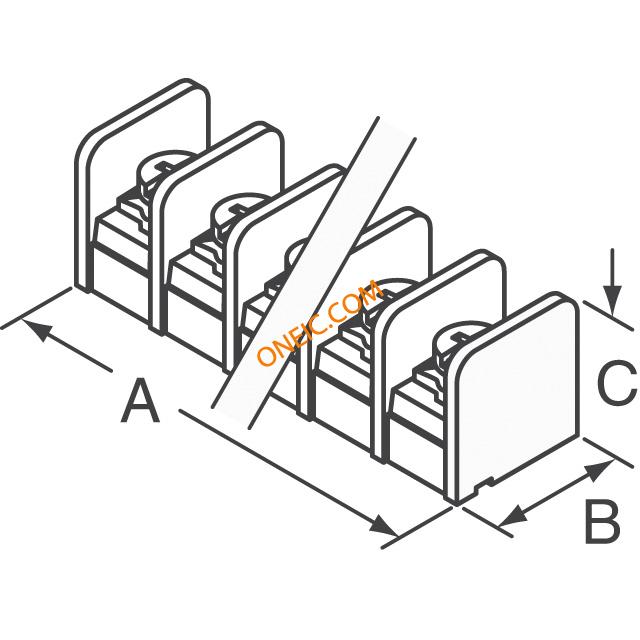

This barrier strip 2-1437667-6 PCB terminal block from TE Connectivity will join multiple circuits by connecting to the bare wire. Its pitch is 8.26 mm. It has a straight body orientation. This is a 1-row connector. 2-1437667-6 is housed in thermoplastic. It uses the solder termination method. This product is 34.67 mm long, 13.46 mm tall and 12.7 mm deep.

Allied Electronics:
Conn; Term Strip; Barrier; 4Pole; 8.26mmPitch; SnglRow; 22-12; Series 4DB; 20A; 150V

安富利:
Conn Barrier Strip 4 POS 8.26mm Solder ST Thru-Hole

Verical:
Conn Barrier Strip 4 POS 8.26mm Solder ST Thru-Hole 20A/Contact Package

MASTER:
ASSEMBLY, DUAL BARRIER 4DB P108 XX

Powell:
Barrier Style Terminal Blocks

Online Components:
4DB-P108-04=4DB ASSEMBLY

Electro Sonic:
4DB-P108-04=4DB ASSEMBLY
