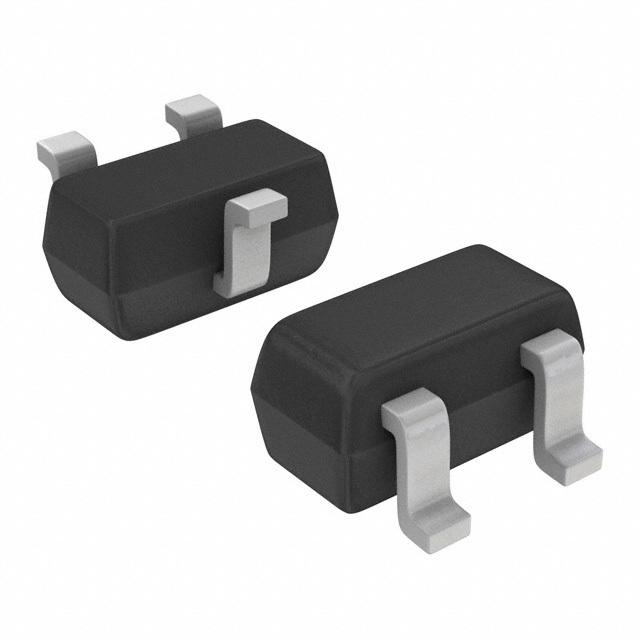

ON SEMICONDUCTOR 2SA1774G 单晶体管 双极, AEC-Q100, PNP, -60 V, 140 MHz, 150 mW, -100 mA, 120 hFE 新
小信号 PNP ,
### 标准
带 S 或 NSV 前缀的制造商部件号具有汽车资格,符合 AEC-Q101 标准。
得捷:
TRANS PNP 50V 0.1A SC75 SOT416
立创商城:
2SA1774G
欧时:
### 小信号 PNP 晶体管,ON Semiconductor这些 ON Semiconductor 双极晶体管可放大模拟或数字信号。 它们还可切换直流或用作振荡器。 ### 标准Manufacturer Part Nos with S or NSV prefix are automotive qualified to AEC-Q101 standard.### 双极性晶体管,On SemiconductorON Semiconductor 的各种双极晶体管,包括以下类别:小信号晶体管 通用晶体管 双 NPN 和 PNP 晶体管 功率晶体管 高电压晶体管 射频双极晶体管 低噪声,双匹配和复杂的双极晶体管
e络盟:
单晶体管 双极, AEC-Q100, PNP, -60 V, 140 MHz, 150 mW, -100 mA, 120 hFE
艾睿:
ON Semiconductor has the solution to your circuit&s;s high-voltage requirements with their PNP 2SA1774G general purpose bipolar junction transistor. This bipolar junction transistor&s;s maximum emitter base voltage is 6 V. Its maximum power dissipation is 150 mW. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This bipolar junction transistor has an operating temperature range of -55 °C to 150 °C. It has a maximum collector emitter voltage of 50 V and a maximum emitter base voltage of 6 V.
Allied Electronics:
ON Semi 2SA1774G PNP Bipolar Transistor, 0.1 A, 60 V, 3-Pin SC-75
安富利:
Trans GP BJT PNP 50V 0.1A 3-Pin SOT-416 T/R
Chip1Stop:
Trans GP BJT PNP 50V 0.1A Automotive 3-Pin SOT-416 T/R
Verical:
Trans GP BJT PNP 50V 0.1A Automotive 3-Pin SOT-416 T/R
Newark:
# ON SEMICONDUCTOR 2SA1774G Bipolar BJT Single Transistor, General Purpose, PNP, 50 V, 140 MHz, 150 mW, 100 mA, 560 hFE
罗切斯特:
Trans GP BJT PNP 50V 0.1A Automotive 3-Pin SOT-416 T/R
DeviceMart:
TRANS PNP GP 50V 100MA SC75-3
Win Source:
TRANS PNP 50V 0.1A SC75-3
频率 140 MHz
额定电压DC -50.0 V
额定电流 -100 mA
无卤素状态 Halogen Free
针脚数 3
极性 PNP, P-Channel
耗散功率 150 mW
击穿电压集电极-发射极 50 V
集电极最大允许电流 0.1A
最小电流放大倍数hFE 120 @1mA, 6V
最大电流放大倍数hFE 560
额定功率Max 150 mW
直流电流增益hFE 560
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 150 mW
安装方式 Surface Mount
引脚数 3
封装 SC-75-3
长度 1.65 mm
宽度 0.9 mm
高度 0.8 mm
封装 SC-75-3
材质 Silicon
工作温度 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Reduces Board Space
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
2SA1774G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
2SA1774T1G 安森美 | 类似代替 | 2SA1774G和2SA1774T1G的区别 |
2SA1774 安森美 | 类似代替 | 2SA1774G和2SA1774的区别 |
S2SA1774G 安森美 | 类似代替 | 2SA1774G和S2SA1774G的区别 |
