2-1437667-4

2-1437667-4 袋装

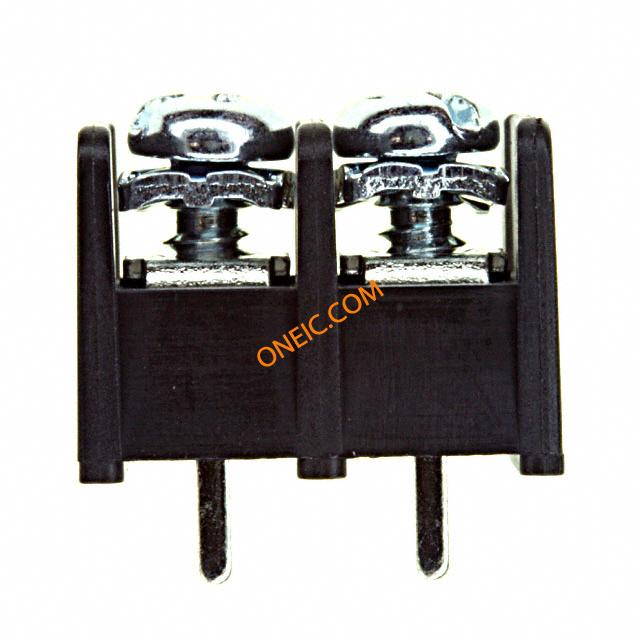

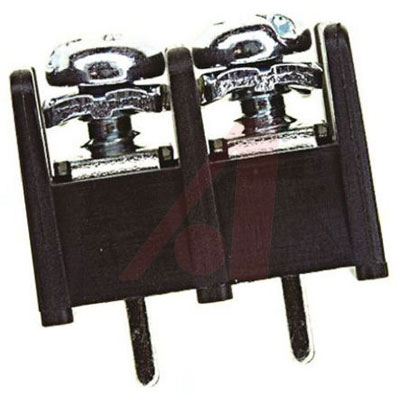

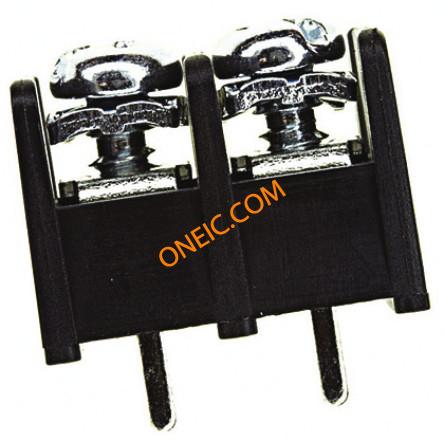

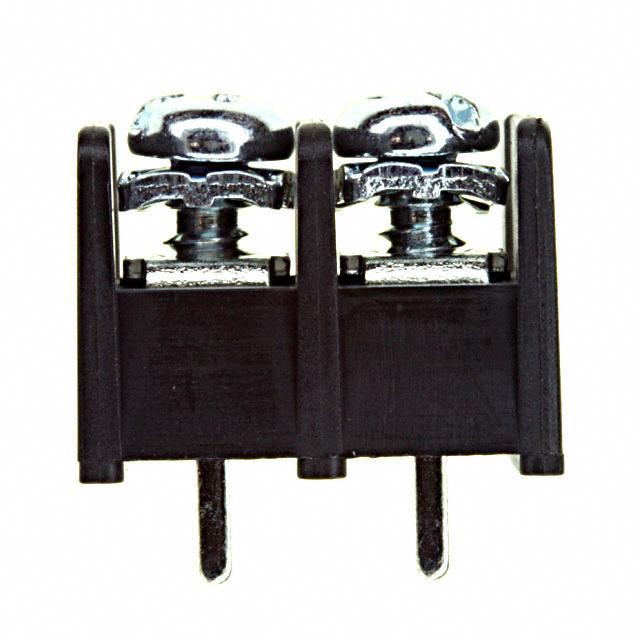

Barrier Strip, 22 to 12 AWG Wire Size, Single Level, Flat Base Style

** Material** : ** Terminals** : Bright acid tin over copper alloy. ** Screws** : #6-32 steel, zinc plating with clear chromate coating. Wire clamping screws and binding head screws available.

Barrier strip with printed circuit pin terminal style.

立创商城:
8.26mm 每排P数:2 排数:1 直针 边脚

艾睿:
Keep your connections strong with this barrier strip 2-1437667-4 PCB terminal block from TE Connectivity utilizing clamps and screws. It has a straight body orientation. Its pitch is 8.26 mm. This is a 1-row connector. 2-1437667-4 is housed in thermoplastic. Its wire is 12-22 AWG. This product is 18.16 mm long, 13.5 mm tall and 12.7 mm deep. It uses the solder termination method.

Allied Electronics:
Conn; Term Strip; Barrier; 2Pole; 8.26mmPitch; SnglRow; 22-12; Series 4DB; 20A; 150V

安富利:
Conn Barrier Strip 2 POS 8.26mm Solder ST Thru-Hole

富昌:
4DB Series Barrier Strip 20 A 300 V 10 A Through Hole Barrier Strip

Chip1Stop:
Conn Barrier Strip 2 POS 8.26mm Solder ST Thru-Hole

Verical:
Conn Barrier Strip 2 POS 8.26mm Solder ST Thru-Hole 20A Package

MASTER:
ASSEMBLY, DUAL BARRIER 4DB P108 XX

Powell:
Barrier Style Terminal Blocks

Online Components:
4DB-P108-02=4DB ASSEMBLY

Electro Sonic:
4DB-P108-02=4DB ASSEMBLY
