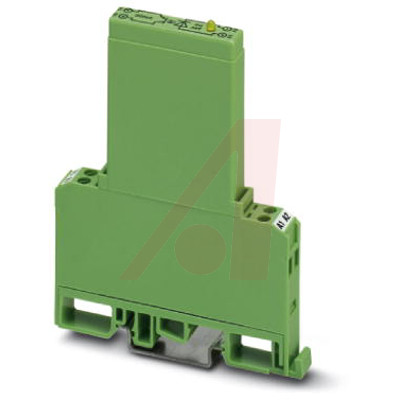

2944216

2944216图片1
2944216图片2
2944216图片3
2944216图片4
2944216图片5
2944216图片6
2944216图片7
2944216概述

Relay SSR 4mA 1.1V DC-IN 36V DC-OUT 4Pin

Relay SSR 4mA 1.1V DC-IN 36V DC-OUT 4-Pin


得捷:
SSR RELAY SPST-NO 1A 5-36V


立创商城:
2944216


艾睿:
Relay SSR 4mA 1.1V DC-IN 36V DC-OUT 4-Pin


Allied Electronics:
DIN RAIL PWR OPTO COUPLER 12VDC


MASTER:
Power solid-state relay - with LED and protective circuit in input and output circuits - input: 12 V DC - output: 5 - 36 V DC/max. 1 A


Online Components:
Relay SSR 4mA 1.1V DC-IN 36V DC-OUT 4-Pin


Electro Sonic:
Power solid-state relay - with LED and protective circuit in input and output circuits - input: 12 V DC - ...


2944216中文资料参数规格
技术参数

负载电流 1 A

线圈电压 12.0 V

输入电压Max 1.1 V

输入电压Min 0.9 V

输出电压Max 36 V

输入电流Min 4 mA

工作温度Max 50 ℃

工作温度Min -20 ℃

输入电压 12 VDC

封装参数

安装方式 Screw

引脚数 4

封装 Module

外形尺寸

封装 Module

物理参数

工作温度 -20℃ ~ 50℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536410060

数据手册

在线购买2944216
型号: 2944216
描述:Relay SSR 4mA 1.1V DC-IN 36V DC-OUT 4Pin
