2SA1790GCL

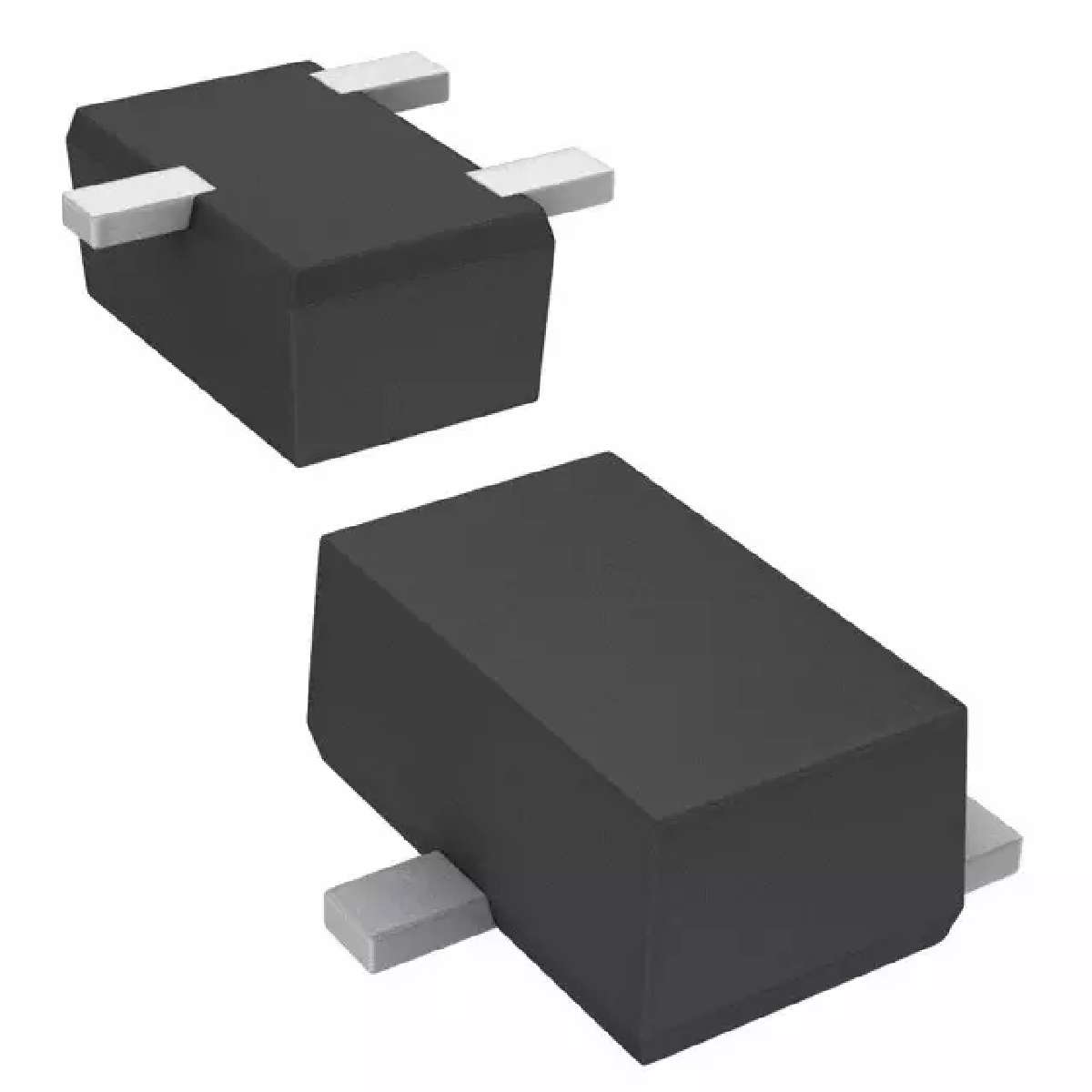

2SA1790GCL PNP三极管 -30V -30mA 300MHz 110~220 -100mV/-0.1V SOT-523 marking/标记 EC

集电极-基极反向击穿电压VBRCBOCollector-Base VoltageVCBO| -30V \---|--- 集电极-发射极反向击穿电压VBRCEOCollector-Emitter VoltageVCEO| −20V 集电极连续输出电流ICCollector CurrentIC| -30mA 截止频率fTTranstion FrequencyfT| 300MHz 直流电流增益hFEDC Current GainhFE| 110~220 管压降VCE（sat）Collector-Emitter SaturationVoltage| -100mV/-0.1V 耗散功率PcPoWer Dissipation| 125mW/0.125W Description & Applications| Silicon PNP epitaxial planer type Features High transition frequency fT. SS-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing. 描述与应用| 硅PNP外延刨床类型 特点 高转换频率FT。 SS-迷你型包装，允许带包装盒包装的设备和通过自动插入
